PSS216FF

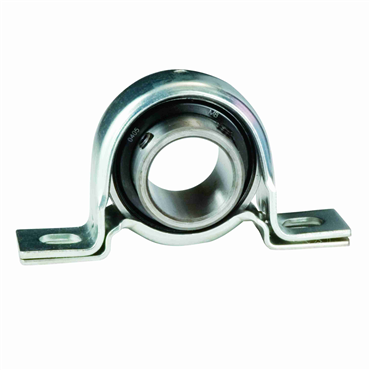

1 in Intermediate Duty Stamped Steel 2 Bolt Pillow Block

Item #106031567

Auto Replenish

each One-time purchase

Product Details

Specifications

Vibration Frequency Roller Spin	0.039 cps
Primary Seal	Flingers Only
Shaft Dia.	1 in
Temperature [Max]	225 °F
Base Length	4 1/2 in
Vibration Frequency Fundamental Train	0.007 cps
I.D.	1 11/64 in
Static Load Rating	1760 lb
Base to Centerline Height	1 1/8 in
Lubrication Type	EXXON RONEX MP STD
Radial Load Rating of Housing Assembly	400 lbf
Housing Top Width	1 1/16 in
Handle / Housing Material	Stamped Steel
Locking Type	Setscrew Locking
No. of Bolts	2
Housing Width	1 1/16 in
Locking Device	Setscrew Locking
Setscrew Torque	87-92 in/lbs
Seal Type	Flingers Only - Free Running
Speed [Max]	11400 rpm
Duty Type	Intermediate
Bolt Size	3/8 in
Duty	Intermediate-Duty
Retainer Type	Nylon
Vibration Frequency Outer Ring Defect	0.06 cps
Mounting Pad Length	4 1/2 in
Length Through Bore	1.17188 in
Coating	Zinc Plated
Mounting Pad Width	1 1/8 in
Vibration Frequency Inner Ring Defect	0.091 cps
Temperature Range [Max]	225 °F
Bearing Design	Non-Expansion
Base Width	1 1/8 in
Flange Type	2-Bolt Flange
Internal Clearance	C3 Standard
Mounting Bolt Size	3/8 in
Special Lube Percent	50% Grease Fill
Housing Material	Stamped Steel
Fixed Expansion	Fixed
Shaft Locking	Setscrew
Dynamic Load Rating	3150 lb
Housing Height	2 7/32 in
Bearing Type	Ball Bearing
Base Height	3/4 in
Center of Bearing to Front of Inner Ring	3/4 in
Mounting Pad Height	3/4 in
Inch/Metric	Inch Bore
Series	200
Weight	0.75 LB
EAN or UPC	662864724623
