AC Motor

Marathon Electric Motors

131515.00

AC Motor

Item #101557887

AC Motor
Air Compressor Motor Application
2 hp
1740 rpm
Single Phase

60 Hz

115/208-230 Voltage Rating

Rigid Base Mount

DP Enclosure

182T Frame

+ Show More

AC Motor

Auto Replenish

each One-time purchase

Alternate Products

Single Phase ODP Rigid Base General Purpose AC Motor

Baldor-Reliance L1405

Single Phase ODP Rigid Base General Purpose AC Motor

Item #101001607

each

Compare

Single Phase ODP Rigid Base General Purpose AC Motor

Baldor-Reliance L1502

Single Phase ODP Rigid Base General Purpose AC Motor

Item #101001620

each

Compare

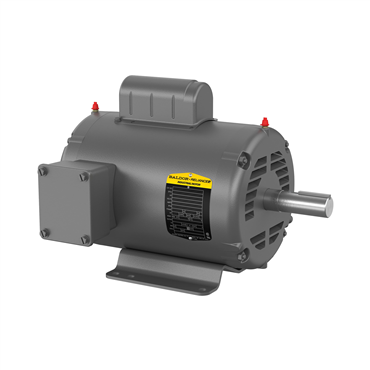

2 hp 182T Frame Single Phase AC Motor

Baldor-Reliance L1405T

2 hp 182T Frame Single Phase AC Motor

Item #101001608

each

Compare

U.S. MotorsD2C2P18

U.S. Motors D2C2P18

General Purpose Single Phase ODP Motor

Item #101668076

each

Compare

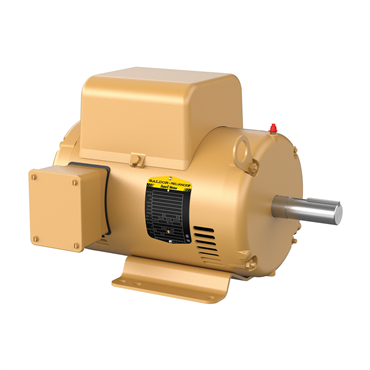

2 hp 182T Frame Single Phase AC Motor

Baldor-Reliance EL1405T

2 hp 182T Frame Single Phase AC Motor

Item #101001185

each

Compare

Product Details

AC Motor
Air Compressor Motor Application
2 hp
1740 rpm
Single Phase

Specifications

Open End Bearing	6205
Drive End Bearing	6206
Poles	4
Voltage Rating	115/208-230
Mounting	Rigid Base
Full Load Amps	24.5/13-12.4
Efficiency Group	72 %
Frame	182T
Phase	Single Phase
Hz	60
Frame Material	Rolled Steel
Service Factor	1.15
Enclosure Designation	Drip Proof
Motor Application	Air Compressor
Insulation	F
RPM	1740 rpm
Enclosure	DP
Rotation	Selective CCW
Weight	59.0 LB
EAN or UPC	691720017661
