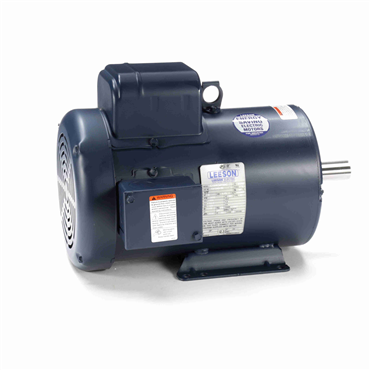

AC Single Phase TEFC Motors

131549.00

AC Single Phase TEFC Motors
Item #101551935
  • TEFC Motors
  • Single Phase
  • 5 hp
  • 3,500 rpm
  • Rigid Mounting
  • TEFC Enclosure
  • 60 Hz
  • 180 Frame
  • Rolled Steel Frame Material
  • F4 Insulation
  • 1.15 Service Factor
+ Show More + Show Less
AC Single Phase TEFC Motors
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • TEFC Motors
  • Single Phase
  • 5 hp
  • 3,500 rpm
  • Rigid Mounting

features

  • Durable rolled steel construction
  • NEMA design B performance
  • Meets or exceed NEMA service factors
  • Double shielded ball bearings
  • Continuous-duty
  • Thermally protected ratings
  • One year warranty on general purpose motors
  • Three year warranty on premium efficient motors
  • UL recognized component listing and CSA certified
Enclosure TEFC
Voltage Rating 230 V
Drive End Bearing 6206
Input Phase Single Phase
RPM 3500 rpm
Phase Single Phase
Full Load Amps 23 A
Efficiency Group 82.5
Service Factor 1.15
Poles 2
HP 5
Enclosure Designation Totally Enclosed Fan Cooled
Rotation Selective CCW
Frame Material Rolled Steel
Mounting Rigid
Frame 180
Motor Application General Purpose
C Dimension 16.96 in
Inch/Metric Inch
Open End Bearing 6205
Insulation F4
Model No. 131549
Hz 60 Hz
Weight 96.0 LB
EAN or UPC 691720017968
