213TTTL16038

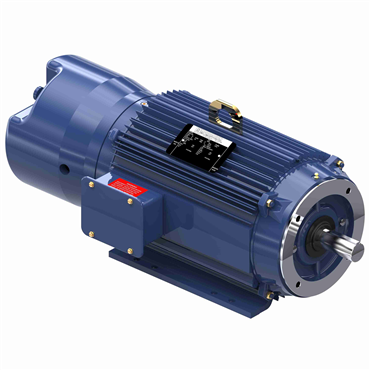

7.5 Hp 60 Hz 1800 rpm Totally Enclosed Fan Cooled Three Phase Brake Motor

Item #113092676

Auto Replenish

each One-time purchase

Product Details

Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
Brake has manual wear adjustment up to 25 lb-ft. for longer pad life
Brake leads routed through motor conduit box (TENV only)
CR200 Corona resistant magnet wire (motor can be operated 10:1 variable torque and 2:1 constant torque
1.0 service factor
Aluminum frame construction
Class F insulation
Stearns brakes, 56,000 series through 25 Lb-Ft, 87 series above 35 LB-Ft and larger
Universal mounting up to 15 Lb-Ft, C406 has vertical springs included, for larger brakes, see mod section
UL recognized, CSA certified and CE mark

Specifications

NEMA Design	B
Efficiency	92.4
KVA Code	H
Insulation Class	F
Frame Material	Aluminum
Electrical Type	Squirrel Cage Induction Run
Resistance Main	1.02
Assembly/Box Mounting	F1/F2 CAPABLE
Rotation	Reversible
Duty	Continuous
Shaft Diameter	1.375 in
Hz	60
Shaft Type	T
Service Factor	1
HP	7.5
ODE Bearing Type	Ball
IP Rating	IP43
No. of Speeds	1
Frame	213TC
No. of Poles	4
Standard	CE, CSA, UL Recognized
Power Factor	79
Speed [Max]	1770 rpm
Voltage	230/460 V
Ambient Temperature Range [Max]	104 °F
Starting Type	Across The Line
Mounting Type	Rigid Base
Amps	19.2/9.6
Motor Orientation	Horizontal
DE Bearing Size	6309
Enclosure	TENV
No. of Phases	Three
ODE Bearing Size	6307
DE Bearing Type	Ball
Weight	0.0 LB
EAN or UPC	722856050823
