213TTTND16539

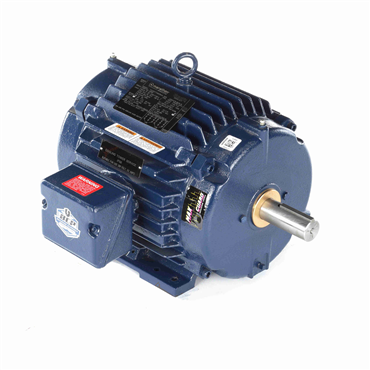

7.5 Hp 60 Hz 1800 rpm Totally Enclosed Fan Cooled Three Phase Severe Duty Motor

Item #114960289

Auto Replenish

each One-time purchase

Product Details

Meets or exceeds NEMA Premium® efficiencies
Bearing current protection (BCP)
Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration
MAX GUARD® Class F insulation system

Specifications

ODE Bearing Size	6208
Ambient Temperature Range [Max]	104 °F
Voltage	230/460 V
Standard	CE, CSA, UL Recognized
No. of Phases	Three
KVA Code	H
Enclosure	TEAO
Power Factor	79.2
Starting Type	Line Or Inverter
Frame Length	9.12 in
Frame Material	Cast Iron
Efficiency	91.7
Insulation Class	F
Assembly/Box Mounting	F1/F2 CAPABLE
Service Factor	1.15
Rotation	Reversible
No. of Speeds	1
Duty	Continuous
Motor Orientation	Horizontal Or Up Or Down
Speed [Max]	1765 rpm
Amps	19.2/9.6
DE Bearing Size	6307
Resistance Main	1.18
HP	7.5
Shaft Diameter	1.375 in
Frame	213TV
Shaft Type	T
Mounting Type	Rigid Base
Shaft Extension	3.38 in
DE Bearing Type	Ball
No. of Poles	4
NEMA Design	B
Hz	60
IP Rating	IP55
Electrical Type	Squirrel Cage Inverter Rated
ODE Bearing Type	Ball
Weight	0.0 LB
EAN or UPC	722856066718
