215THTCD8038

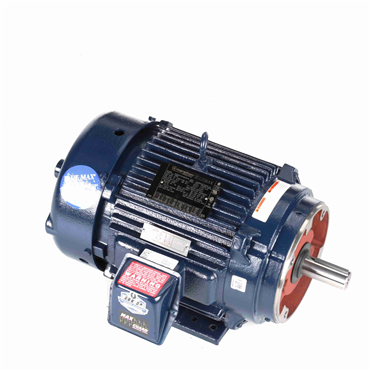

10 Hp 60 Hz 1800 rpm Totally Enclosed Fan Cooled Three Phase Encoder Motor

Item #118577331

Auto Replenish

each One-time purchase

Product Details

Cast iron frame and brackets
Patented “fracket” design (TEBC enclosure)
Constant torque operation from 0 to base speed on vector drive, including TEFC (On Volts/Hertz drives, TEFC motors are limited to 20:1 constant torque
Constant HP operation to twice base speed (143-256 frame)
1.5 times base (all others)
MAX GUARD® Class H insulation system with CR200 corona resistant magnet wire
Continuous duty at 40° C ambient
Normally closed thermostats (one per phase, class F)
Optimized for operation with IGBT inverter (NEMA Design A)
Encoder provisions included on opposite drive end (see modification and/or accessory kits sections)
Ball bearings (roller bearing available 360 frame & larger)
Field reversible to F2
Encoder provisions included on opposite drive end (see modification and/or accessory kits sections)
Bearing current protection (BCP), mounted internally
UL® Recognized & CSA certified and CE® Mark

Specifications

Frame Material	Cast Iron
Assembly/Box Mounting	F1/F2 CAPABLE
ODE Bearing Size	6206
Insulation Class	H
No. of Poles	4
Motor Orientation	Horizontal
Shaft Diameter	1.375 in
Rotation	Reversible
KVA Code	L
IP Rating	IP55
No. of Speeds	1
No. of Phases	Three
Voltage	230/460 V
Enclosure	TENV
DE Bearing Size	6309
Hz	60
Electrical Type	Squirrel Cage Inverter Duty
ODE Bearing Type	Ball
Mounting Type	Rigid Base
Speed [Max]	1770 rpm
Duty	Continuous
Power Factor	81
Standard	CE, CSA, UL Recognized
Frame	215TC
DE Bearing Type	Ball
Amps	25/12.5
HP	10
Shaft Type	T
NEMA Design	INV
Efficiency	91.7
Overload Protector	Thermostat
Resistance Main	0.753
Service Factor	1
Ambient Temperature Range [Max]	104 °F
Starting Type	Inverter Only
Weight	0.0 LB
EAN or UPC	722856214478
