286TTFNA16572

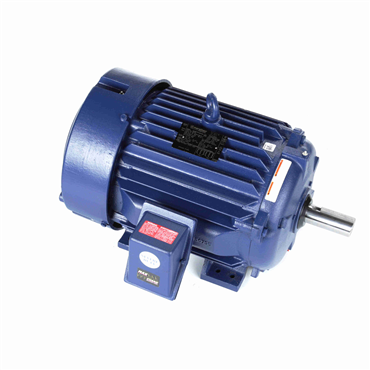

30 Hp 60 Hz 1800 rpm Drip Proof Three Phase Severe Duty Motor

Item #112848960

Auto Replenish

each One-time purchase

Product Details

Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration
Internal and external epoxy paint
Class F insulation
Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower
Extended grease tubes, regreasable in service
T-drains provided for effective drainage (Installed in both endshields
Suitable for shaft down mounting
Shaft Slinger
Forsheda seals on both ends
Actual test and vibration data supplied with each motor

Specifications

Duty	Continuous
Resistance Main	0.20499999999999999
KVA Code	G
Shaft Extension	4.82 in
Speed [Max]	1773 rpm
Shaft Diameter	1.875 in
Hz	60
Frame Material	Cast Iron
Rotation	Reversible
Efficiency	94.1
Electrical Type	Squirrel Cage Inverter Rated
Shaft Type	T
Standard	CE, CSA, UL Recognized
Insulation Class	F
Assembly/Box Mounting	F1/F2 CAPABLE
Mounting Type	Rigid Base
DE Bearing Size	6311
Service Factor	1.15
HP	30
Motor Orientation	Horizontal
Amps	73/36.5
No. of Phases	Three
Frame	286T
ODE Bearing Size	6210
Power Factor	82
Starting Type	Line Or Inverter
NEMA Design	B
DE Bearing Type	Ball
Voltage	230/460 V
IP Rating	IP55
Ambient Temperature Range [Max]	104 °F
ODE Bearing Type	Ball
Frame Length	14.25 in
Enclosure	TEFC
No. of Poles	4
No. of Speeds	1
Weight	487.0 LB
EAN or UPC	722856018861
