KIT 280TCGN

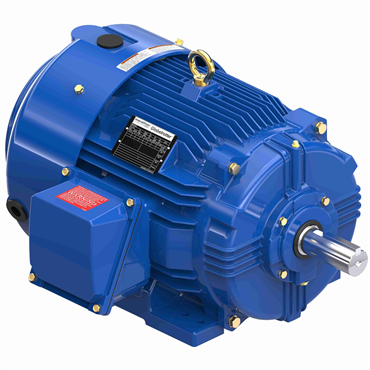

20 Hp 60 Hz 1200 rpm Totally Enclosed Fan Cooled Three Phase Severe Duty Motor

Item #117499666

Auto Replenish

each One-time purchase

Product Details

Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2026
100% cast iron construction for rigidity and reduced vibration
Meets IEEE45 USCG Marine Duty,Meets Ford EM1 Automotive Duty Specification
MAX GUARD® Class H insulation system
IP55 protection
Constant Torque for inverter duty
Sintered bronze breather with brass drain & breather
Bearing caps, Precision balanced to .08”/sece.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
Internal and external epoxy finish

Specifications

ODE Bearing Type	Ball
Speed [Max]	1180 rpm
ODE Bearing Size	6211
Frame	286T
Electrical Type	Squirrel Cage Inverter Rated
Hazardous Location	DIVISION 2 T2B
HP	20
No. of Phases	Three
Resistance Main	0.56200000000000006
Standard	CE, CSA, UL Listed
Motor Orientation	Horizontal
Service Factor	1.15
Efficiency	91.7
Power Factor	79
No. of Poles	6
Enclosure	TEFC
Insulation Class	H
Frame Material	Cast Iron
Hz	60
No. of Speeds	1
Rotation	Reversible
Mounting Type	Rigid Base
KVA Code	G
Shaft Type	T
IP Rating	IP55
Amps	26
Duty	Continuous
Assembly/Box Mounting	F1/F2 CAPABLE
Shaft Diameter	1.875 in
DE Bearing Size	6311
Ambient Temperature Range [Max]	104 °F
Starting Type	Line Or Inverter
DE Bearing Type	Ball
NEMA Design	B
Voltage	460 V
Weight	0.0 LB
EAN or UPC	722856190611
