SB22230W33SS

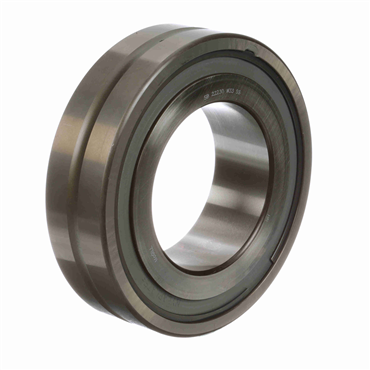

Spherol® Straight Bore Radial Spherical Roller Bearing With Single Seal

Item #101089017

Auto Replenish

each One-time purchase

Alternate Products

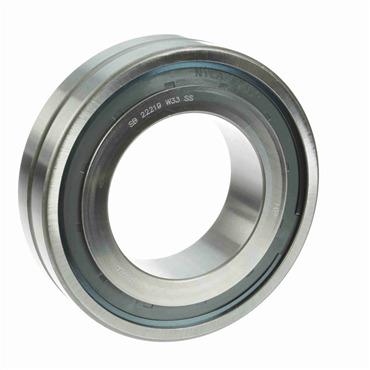

Spherol® Straight Bore Radial Spherical Roller Bearing With Double Seal

Item #101089018

each

Compare

Product Details

Specifications

Static Load Rating (lb)	211000
Housing Shoulder Diameter	3.125 in
I.D.	150 mm
Speed (Max) Grease	800
Series	22200
Full Complement/Caged	Caged
Number of Rows	1
Speed (Max) Oil	1600
Precision Rating	P0 \| ISO 15-2008
Bore Size - Metric	150
O.D.	270 mm
Dynamic Load Rating (lb)	169300
Lubrication Hole Type	Lubrication Groove & Hole
Duplexing	No
Enclosure	Sealed On Both Sides
Overall Width (mm)	73
Housing & Shaft Fillet (in)	0.098
Shaft Shoulder Diameter	6.688 in
Dynamic Load Rating	169300 lb
Material	52100 Bearing Steel
Sealed	Sealed - Both Sides
Outer Ring Type	Not Split
Overall Width (in)	2.874
Outside Diameter - Metric	270
Maximum Operating Temperature	300
W33 Groove Width	0.547
Platform	Spherol
Overall Width	2.874 in, 73 mm
Speed [Max] - Oil	1600 rpm
Operating Temperature [Min]	-30 °F
Speed [Max] - Grease	800 rpm
Seal Type	Single Seal
Hole Type	Lubrication Groove & Hole
Cage Material	Steel
Shaft Fillet	0.098 in
Bore Type	Straight
Rolling Element	Spherical Roller
Operating Temperature [Max]	300 °F
Finish	Uncoated
Static Load Rating	211000 lb
Angular Misalignment	2 Degrees
Radial Clearance	Normal
Misalignment	2 Degrees
No. of Rows	Single
Groove Width	0.547
Weight	39.5 LB
EAN or UPC	726166009076
