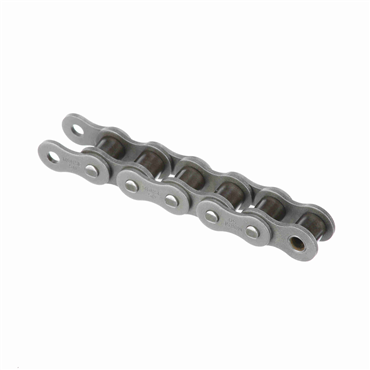

Single Strand ANSI Roller Chain

50RIV

Single Strand ANSI Roller Chain
Item #100799383
  • #50 Chain
  • 1 Strand
  • 5/8" Pitch
  • Riveted
  • Carbon Steel Material
  • 10 Foot Box
+ Show More + Show Less
Single Strand ANSI Roller Chain
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • #50 Chain
  • 1 Strand
  • 5/8" Pitch
  • Riveted
  • Carbon Steel Material

features

  • Unmatched Quality and Performance in Morse Brand Chain
  • Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
  • Available in package quantities or via quick-turnaround cut-to-length

compliances

  • Conforms to ANSI requirements
Roller Width 0.375 in
Self-Lubricating No
Side Bow No
Duty Standard-Duty
Pin Overall Length 0.79 in
Chain Size 50
Roller Dia. 0.4 in
Link Plates Height 0.584 in
Total Length 10 ft
Material Steel
Rated Working Load 610 lbs
Inside Plate Height 0.584 in
Coating Uncoated
Chain Series 50, 50-2, 50-3, 50-4
Link Plates Thickness 0.08 in
Pin Material Carbon Steel
Chain Pitch 0.625 in
Standard Met ANSI B29.1
Pin Diameter 0.2 in
Chain Type Standard
Chain No. 50
Side Plate Configuration Hourglass
Plate Thickness 0.08 in
Centerline to Opposite Cotter Pin Side 0.395
Pins & Rollers Standard
No. of Strands Across 1
Number of Strands/Width 1
Pin Length - Riveted 0.79
Package Type 10 Foot Box
Centerline to Outside of Cotter Pin 0.46
Pin Dia. 0.2 in
Width Over Pins 0.79 in
Chain Construction Riveted
Average Tensile Strength 6100 psi
No. of Connecting Links Included 1
Weight 0.759 LB
EAN or UPC 662288395096
