FB215CE

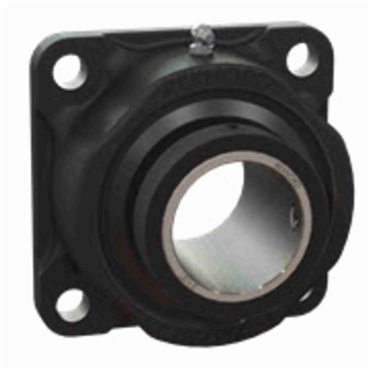

Cast Iron 2 15/16 in Shaft Dia Single Set Collar Spherical Roller Flange Block

Item #113458836

Auto Replenish

each One-time purchase

Product Details

Specifications

Vibration Frequency Roller Spin	0.0547 cps
Vibration Frequency Inner Ring Defect	0.1721 cps
Shaft Locking	Single Set Collar
Seal Type	C Clearance Seals
Standoff Distance	0.36 in
Inch/Metric	Inch
Temperature [Max]	225 °F
Housing Coating	Powder Coated
Bearing Type	Spherical Roller
Vibration Frequency Fundamental Train	0.0071 cps
Bore Range [Min]	1.4375 in
Locking Collar O.D.	4.04 in
Collar O.D.	4.04 in
RPM [Max]	2420 rpm
Size Code	9
Bolt Circle Dia.	7.88 in
Set Screw Torque	680 in lb
Grease Fitting Size	1/8 NPT
Setscrew Torque	680 in-lbs
Shaft Dia.	2.9375 in
Bolt Center-to-Center Length	5.57 in
Mounting Pad Height	0.75 in
Bearing Design	Expansion
Bolt Hole Circle Diameter	7.88 in
Retainer Type	Steel
Special Lube Fitting	Straight And 90 Deg Fitting
Length Through Bore	3.65 in
Bolt Size	3/4 in
Radial Dynamic Load Capacity	41000 lb
Temperature Range [Max]	225 °F
Bore Length	3.65 in
Vibration Frequency Outer Ring Defect	0.1279 cps
Volume	0.12 ft3
Primary Seal	Steel Clearance Seal
Mounting Bolt Size	3/4 in
Total Expansion Capability	0.34 in
Lubricant Type	Exxon Ronex MP
Static Load Rating	48420 lb
Flange Thickness	0.75 in
Housing Material	Cast Iron
Mounting Pad Width	7.19 in
Dynamic Load Rating	41000 lbf
Housing Diameter	6.1 in
Lubrication Type	Exxon Ronex MP Std
Locking Device	Setscrew Locking Collar
Bearing Standoff Distance	0.36 in
Bearing Housing	Flange Block 4 Bolt Square RB
Bore Range [Max]	3.9375 in
Weight	16.4 LB
EAN or UPC	782934930546
