FC308CE

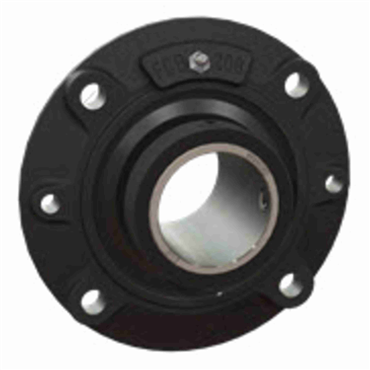

Cast Iron Spherical Roller Single Set Collar 3 1/2 in Shaft Dia Cartridge Block

Item #113458891

Auto Replenish

each One-time purchase

Product Details

Specifications

RPM [Max]	1980 rpm
Grease Fitting Size	1/8 NPT
Duty	Heavy-Duty
Lubrication Type	Exxon Ronex MP Std
Static Load Rating [Max]	77880 lbf
Static Load Rating	77880 lb
Bolt Circle Radius	4.31 in
Locking Collar O.D.	4.90 in
Vibration Frequency Inner Ring Defect	0.1638 cps
Setscrew Torque	680 in-lbs
Shaft Locking	Single Set Collar
Bearing Design	Expansion
Vibration Frequency Roller Spin	0.0513 cps
Relubricatable	Yes
Radial Dynamic Load Capacity	64000 lb
Bore Length	4.12 in
Mounting Housing Width	0.94 in
Collar O.D.	4.9 in
Inch/Metric	Inch
Pilot Depth	1.27 in
Retainer Type	Steel
Housing Material	Cast Iron
Mounting Bolt Size	3/4 in
Special Lube Fitting	Straight And 90 Deg Fitting
Pilot Dia.	7.38 in
Temperature [Max]	225 °F
Primary Seal	Steel Clearance Seal
Vibration Frequency Outer Ring Defect	0.1195 cps
Bearing Housing	Flg Cart 4 Blt Rnd RB
Locking Device	Setscrew Locking
Size Code	10
Bolt Center-to-Center Length	6.1 in
Shaft Dia.	3.5 in
Seal Type	C Clearance Seals
Temperature Range [Max]	225 °F
Total Expansion Capability	0.34 in
Dynamic Load Rating	64000 lbf
Housing Coating	Powder Coated
Volume	0.25 ft3
Bearing Type	Spherical Roller
Housing O.D.	10.25 in
Type	Spherical Roller Bearing
Vibration Frequency Fundamental Train	0.0070 cps
Weight	26.19 LB
EAN or UPC	782934929588
