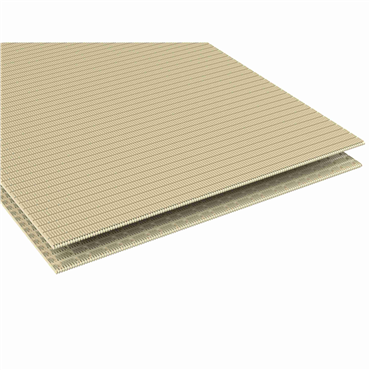

- MatTop Chain
- 5997 Chain Series
- Straight Running, Raised Rib Type
- 2 1/4 in Chain Pitch
- 96 in Module Width
description
- Rex® MatTop® chains provide a continuous conveying surface for applications demanding greater width requirements (available in both assembled-to-width and molded-to-width configurations). Pins extend the full width of the chain, ensuring maximum strength and providing smoother conveying surfaces. Smaller pitch chains minimize the size of dead plates when transferring products over head or tail shafts reducing chordal action which helps eliminate container tipping and jam-ups at transfer points. Engineered to satisfy a wide range of conveyor applications for virtually any product size.
| Low Friction | No |
| Series | Straight Running |
| Link Plates Thickness | 1/4 in |
| Pin Material | Polypropylene |
| Color | Beige |
| Material | High Temperature |
| Support Area Percent | 77.7 % |
| Surface Type | Raised Rib |
| Thickness | 0.97 in |
| Module Width | 96 in |
| Chain Width | 96 in, 2438.4 mm |
| Package Type | 10 Foot Box |
| Chain Series | 5997 |
| Open Area | 0.223 % |
| Chain Number | 5997 |
| Chain Strength | 2400 lbs/ft, 35016 Nm |
| Chain Pitch | 2.25 in, 57.2 mm |
| Rod Material | Polypropylene |
| Chain Material | HT |
| Type | Straight Running, Raised Rib |
| High Temperatures | Yes |
| Straight or Side-Flex | Straight Running |
| Curve Retention | Straight |
| Weight | 17.6 LB |
| EAN or UPC | 793699265194 |
-
