KB2300

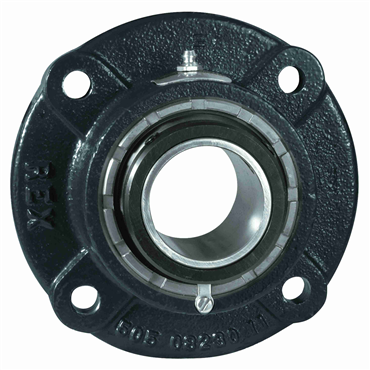

Cast Iron 3 in Shaft Dia Single Set Collar Spherical Roller Flange Block

Item #101475645

Auto Replenish

each One-time purchase

Product Details

Specifications

Vibration Frequency Roller Spin	0.0591 cps
Grease Fitting Size	1/8 NPT
Radial Dynamic Load Capacity	57750 lb
Volume	1.712 GLL
Bolt Circle Radius	3 15/16 in
End Type	Open End
Locking Device	Single Setscrew Locking Collar
Housing Diameter	6 1/4 in
Bearing Design	Non-Expansion
Series	2000
Shape	Round
Bearing Housing	Flange Block 4 Bolt Round
Lubrication	Relubricatable
Inch/Metric	Inch
Vibration Frequency Inner Ring Defect	0.1701 cps
Misalignment Range	±1 1/2°
Style	4-Bolt Flange
Primary Seal	Buna Single Lip Light Contact
Housing Length	9 1/2 in
Bolt Size	3/4 in
Vibration Frequency Outer Ring Defect	0.1299 cps
Threaded Cover Kit	TC9
Collar O.D.	4 1/16 in
Inner Ring Hub Diameter	3 3/8 in
Bolt Hole Spacing	5 9/16 in
Duty	Heavy-Duty
Housing Coating	Powder Coated
Flange Type	4-Bolt Flange
Housing Material	Cast Iron
Size Code	9
Lubricant Type	Exxon Ronex MP
Bearing Type	Spherical Roller
Shaft Locking	Single Set Collar
Lubrication Type	Exxon Ronex MP Std
Seal Type	Single Lip Light Contact Seals
Bolt Circle Dia.	7 7/8 in
Bore Range [Min]	0.75 in
RPM [Max]	1900 rpm
Mounted Clearance	C3 Standard
Mounted Unit Duty	Heavy Duty
Flange Thickness	7/8 in
Bearing Standoff Distance	3/32 in
Retainer Type	Engineered Polymer
Vibration Frequency Fundamental Train	0.0072 cps
Static Load Rating	71500 lb
Housing Construction	One Piece
Shaft Dia.	3 in
Set Screw Torque	680 in lb
Length Through Bore	4 in
Bore Range [Max]	4 in
Temperature Range [Max]	225 °F
Weight	25.1 LB
EAN or UPC	698210642389
