MBR6207

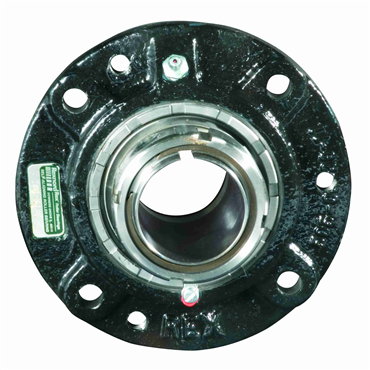

6000 Series 4-Bolt Flange Spherical Roller Bearing Cartridge Unit

Item #101548930

Auto Replenish

each One-time purchase

Product Details

Specifications

Series	6000
Pilot Depth	1 in
Locknut Outside Diameter	3 19/32 in
Flange Pilot Diameter	5 1/2 in
Inch/Metric	Inch
Length Through Bore	4.0625 in
Vibration Frequency Fundamental Train	0.0072 cps
Vibration Frequency Outer Ring Defect	0.1376 cps
Lubrication Type	Exxon Ronex MP Std
Housing Coating	Powder Coated
Shaft Locking	Shurlok Tapered Adapter
Lubricant Type	Exxon Ronex MP
Bolt Size	1/2 in
Bore Dia. [Min]	1 7/16 in
Bearing Design	Non-Expansion
Bearing Type	Spherical Roller
Bolt Hole Spacing	4 19/32 in
Vibration Frequency Roller Spin	0.0607 cps
Radial Dynamic Load Capacity	43240 lb
Static Load Rating	53500 lb
Duty	Heavy-Duty
Primary Seal	Buna Spring Loaded Lip Seal
Flange Type	4-Bolt Flange
Retainer Type	Engineered Polymer
Seal Type	Spring Loaded Heavy Contact Seals
Grease Fitting Size	1/8 NPT
Flange Thickness	5/8 in
Locking Device	Shurlok Adapter Mounted
Type	Spherical Roller Bearing
Vibration Frequency Inner Ring Defect	0.1791 cps
Relubricatable	Yes
Temperature Range [Max]	225 °F
Size Code	8
Shape	Round
Bolt Circle Radius	3 1/4 in
Housing Material	Cast Iron
RPM [Max]	2000 rpm
Set Screw Torque	87 to 92 in lb
Shaft Dia.	2 7/16 in
Housing Length	7 5/8 in
Bore Dia. [Max]	6 15/16 in
Weight	14.8 LB
EAN or UPC	793699903119
