MEF5307

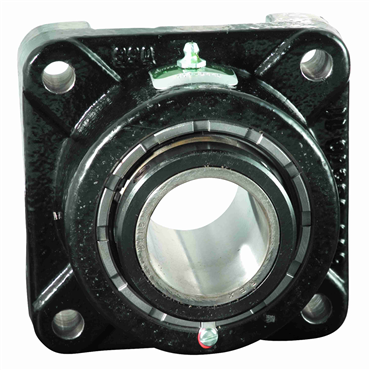

Cast Iron 3 7/16 in Shaft Dia Double Set Collar Spherical Roller Flange Block

Item #102144963

Auto Replenish

each One-time purchase

Product Details

Specifications

Mounted Clearance	C3 Standard
Shaft Dia.	3.4375 in
Bore Range [Min]	1.4375 in
Mounted Unit Duty	Heavy Duty
Primary Seal	Buna Spring Loaded Lip Seal
Lubrication Type	Exxon Ronex MP Std
Radial Dynamic Load Capacity	84330 lb
Vibration Frequency Roller Spin	0.0628 cps
Vibration Frequency Fundamental Train	0.0073 cps
End Type	Open End
Static Load Rating	90700 lb
Volume	1.712 GLL
Length Through Bore	5.3125 in
Lubricant Type	Exxon Ronex MP
Style	4-Bolt Flange
Collar O.D.	4 29/32 in
Housing Diameter	7 3/8 in
Vibration Frequency Outer Ring Defect	0.1383 cps
Bolt Size	3/4 in
Retainer Type	Engineered Polymer
RPM [Max]	1400 rpm
Locking Device	Double Setscrew Locking Collars
Housing Material	Cast Iron
Bearing Standoff Distance	1/4 in
Series	5000
Temperature Range [Max]	225 °F
Housing Coating	Powder Coated
Bore Range [Max]	4 in
Vibration Frequency Inner Ring Defect	0.1784 cps
Set Screw Torque	680 in lb
Bearing Housing	Flg Blk 4 Blt SQ Footed Type E
Bolt Circle Dia.	9 29/32 in
Bolt Circle Radius	4 61/64 in
Duty	Heavy-Duty
Bearing Design	Non-Expansion
Grease Fitting Size	1/8 NPT
Misalignment Range	±1 1/2°
Housing Length	9 1/4 in
Shaft Locking	Double Set Collar
Inch/Metric	Inch
Size Code	10
Bolt Hole Spacing	7 in
Threaded Cover Kit	TC10
Shape	Square
Lubrication	Relubricatable
Seal Type	Spring Loaded Heavy Contact Seals
Bearing Type	Spherical Roller
Flange Type	4-Bolt Flange
Housing Construction	One Piece
Inner Ring Hub Diameter	3 31/32 in
Flange Thickness	1 15/16 in
Weight	42.7 LB
EAN or UPC	698210912062
