MFS5215

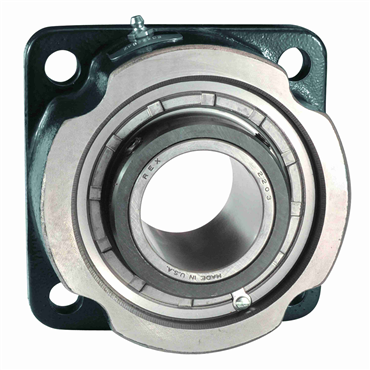

Cast Iron 2 15/16 in Shaft Dia Double Set Collar Spherical Roller Flange Block

Item #101489897

Auto Replenish

each One-time purchase

Product Details

Specifications

Bearing Housing	Flg Blk 4 Blt SQ Type ZF
Primary Seal	Buna Spring Loaded Lip Seal
Bearing Design	Expansion
Bolt Size	3/4 in
Set Screw Torque	680 in lb
Mounted Unit Duty	Heavy Duty
Temperature Range [Max]	225 °F
Housing Material	Cast Iron
Mounted Clearance	C3 Standard
Bore Range [Min]	1.4375 in
Vibration Frequency Outer Ring Defect	0.1299 cps
Seal Type	Spring Loaded Heavy Contact Seals
Shape	Square
Bolt Circle Radius	4 1/4 in
Collar O.D.	4 1/16 in
Lubricant Type	Exxon Ronex MP
Retainer Type	Engineered Polymer
Lubrication Type	Exxon Ronex MP Std
Flange Thickness	0.875 in
Volume	1.697 GLL
RPM [Max]	1700 rpm
Static Load Rating	71500 lb
Vibration Frequency Inner Ring Defect	0.1701 cps
Flange Type	4-Bolt Flange
Radial Dynamic Load Capacity	57750 lb
Inch/Metric	Inch
Series	5000
Housing Diameter	7.125 in
Vibration Frequency Roller Spin	0.0591 cps
Bearing Type	Spherical Roller
Threaded Cover Kit	TC9
Size Code	9
Lubrication	Relubricatable
Grease Fitting Size	1/8 NPT
Bore Range [Max]	5 in
Length Through Bore	4.875 in
Locking Device	Double Setscrew Locking Collars
Shaft Dia.	2.9375 in
Bolt Hole Spacing	6 1/64 in
Vibration Frequency Fundamental Train	0.0072 cps
Housing Coating	Powder Coated
Shaft Locking	Double Set Collar
Weight	30.9 LB
EAN or UPC	698210701802
