P2B207C

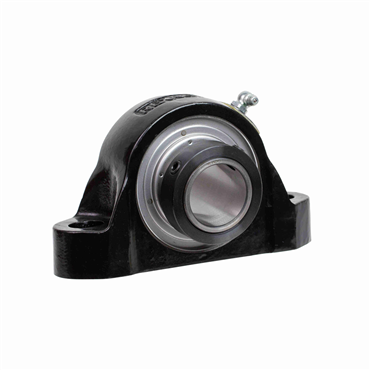

Solid Pillow Block

Item #113458918

Auto Replenish

each One-time purchase

Product Details

Specifications

Mounting Pad Length	8.86 in
Distance from Bearing Centerline to Cap Face	2.69 in
Vibration Frequency Roller Spin	0.0507 cps
Static Load Rating	43870 lb
Shaft Dia.	2.4375 in
Special Lube Fitting	Straight And 90 Deg Fitting
Bolt Size	5/8 in
Length Through Bore	3.55 in
Locking Collar O.D.	3.55 in
Handle / Housing Material	Cast Iron
Mounting Bolt Hole Slot Length	0.94 in
Vibration Frequency Inner Ring Defect	0.1640 cps
Inch/Metric	Inch Bore
Grease Fitting Size	1/8 NPT
Mounting Pad Width	2.81 in
Dynamic Load Rating	38400 lbf
RPM [Max]	2670 rpm
Primary Seal	Steel Clearance Seal
Base to Centerline Height	2.75 in
Temperature [Max]	225 °F
Center Line to Base Dimension [Min]	2 3/4 in
Lubrication Type	Exxon Ronex MP Std
Lubrication	Exxon Ronex MP
Base Length	8.86 in
Vibration Frequency Fundamental Train	0.0070 cps
Volume	0.11 ft3
Housing Material	Cast Iron
Shaft Locking	Single Set Collar
Bearing Design	Fixed
Mounting Bolt Size	5/8 in
Distance Between Bolt Holes [Min]	6.94 in
Seal Type	C Clearance Seals
Vibration Frequency Outer Ring Defect	0.1193 cps
Housing Coating	Powder Coated
Housing Height	5.59 in
Base Width	2.81 in
Bolt Hole Length	0.94 in
Radial Dynamic Load Capacity	38400 lb
Base Height	1.63 in
Setscrew Torque	680 in-lbs
Size Code	8
Bearing Type	Spherical Roller
Mounting Pad Height	1.63 in
Distance Between Bolt Holes [Max]	7.31 in
Locking Device	Setscrew Mounting Collar
Bore Length	3.55 in
Temperature Range [Max]	225 °F
Retainer Type	Steel
Weight	13.94 LB
EAN or UPC	782934931864
