ZEF6207

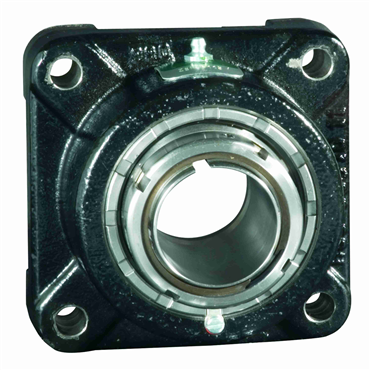

Cast Iron 2 7/16 in Shaft Dia Shurlok Tapered Adapter Spherical Roller Flange Block

Item #104573643

Auto Replenish

each One-time purchase

Product Details

Specifications

Bearing Type	Spherical Roller
Locknut Outside Diameter	3 19/32 in
RPM [Max]	3300 rpm
Static Load Rating	53500 lb
Bolt Circle Radius	3 51/64 in
Vibration Frequency Fundamental Train	0.0072 cps
Lubrication	Relubricatable
Retainer Type	Engineered Polymer
Inch/Metric	Inch
Locking Device	Shurlok Adapter Mounted
Set Screw Torque	87 to 92 in lb
Shaft Dia.	2.4375 in
Shaft Locking	Shurlok Tapered Adapter
Lubricant Type	Exxon Ronex MP
Vibration Frequency Roller Spin	0.0607 cps
Housing Coating	Powder Coated
Seal Type	Clearance Seals
Bearing Housing	Flg Blk 4 Blt SQ Footed Type E
Flange Thickness	1 11/16 in
Housing Material	Cast Iron
Temperature Range [Max]	225 °F
Primary Seal	Steel Clearance Seal
Grease Fitting Size	1/8 NPT
Length Through Bore	4.0625 in
Bearing Standoff Distance	1 1/16 in
Bolt Size	5/8 in
Mounted Clearance	C3 Standard
Mounted Unit Duty	Heavy Duty
Bearing Design	Non-Expansion
Lubrication Type	Exxon Ronex MP Std
Vibration Frequency Inner Ring Defect	0.1791 cps
Size Code	8
Series	6000
Inner Ring Hub Diameter	2 29/32 in
Bolt Hole Spacing	5 3/8 in
Shape	Square
Housing Diameter	5 1/2 in
Bore Range [Min]	1.4375 in
Radial Dynamic Load Capacity	43240 lb
Flange Type	4-Bolt Flange
Vibration Frequency Outer Ring Defect	0.1376 cps
Threaded Cover Kit	TC8
Bore Range [Max]	3.9375 in
Volume	1.697 GLL
Weight	18.3 LB
EAN or UPC	698210107666
