ZMC6307

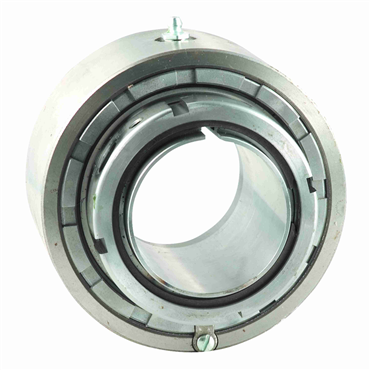

Spherical Roller 3 7/16 in Shaft Dia Cartridge Block

Item #104417142

Auto Replenish

each One-time purchase

Product Details

Specifications

Set Screw Torque	165 to 185 in lb
Length Through Bore	5.03125 in
Type	Spherical Roller Bearing
RPM [Max]	2400 rpm
Shaft Dia.	3.4375 in
Slot Length	1 1/16 in
Inch/Metric	Inch
Lubricant Type	Exxon Ronex MP
Outside Dia.	6.75 in
Temperature Range [Max]	225 °F
Bore Dia. [Min]	1 7/16 in
Mounted Clearance	C3 Standard
Series	6000
Relubricatable	Yes
Lubrication Type	Exxon Ronex MP Std
Vibration Frequency Fundamental Train	0.0073 cps
Cartridge Length	3 7/16 in
Size Code	10
Bearing Design	Non-Expansion
Duty	Heavy-Duty
Bore Dia. [Max]	6 15/16 in
Locknut Outside Diameter	4 61/64 in
Slot Width	0.59 in
Vibration Frequency Inner Ring Defect	0.1784 cps
Volume	0.998 GLL
Grease Fitting Size	1/8 NPT
Locking Device	Shurlok Adapter Mounted
Seal Type	Clearance Seals
Bearing Type	Spherical Roller
Vibration Frequency Outer Ring Defect	0.1383 cps
Retainer Type	Engineered Polymer
Vibration Frequency Roller Spin	0.0628 cps
Housing Material	Cast Iron
Static Load Rating	90700 lb
Radial Dynamic Load Capacity	84330 lb
Threaded Cover Kit	TC10
Weight	20.5 LB
EAN or UPC	793699906325
