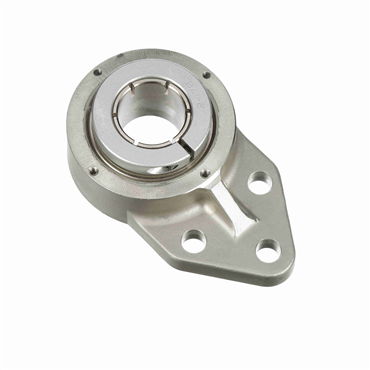

High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
Solid construction with machined base was designed for minimal gaps and no fillers
Skwezloc® Concentric locking for near perfect concentricity with fluoropolymer coated collar and corrosion resistant cap screw
Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity & ball path instead of around a lubrication groove, prevents outer ring rotation.
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
USDA H1 complaint food grade grease
options
Corrosion Resistant - Reduced Maintenance - Lubed for Life
Centerline to Front Face
1.06 in
Overall Height to Inner Ring
1.875 in
Overall Length
6.12 in
Inner Race Length
1.75 in
Overall Length (in)
6.12
Bore Size - Inch
1.438
Locking Type
Concentric
Retainer Type
Land Riding
Housing Width
3.75 in
Radial Static Load Capacity (lb)
3493
Bolt Size
0.5 in
Overall Height (in)
6.12
Bolt Center-to-Center Length
2 in
Overall Width
3.75 in
Bearing Type
Ball Bearing
Bearing Insert Coating
Phosphorus Nickel
Insert No.
PN-23T
Centerline to Front Face (in)
1.06
End Cap
Yes
Radial Dynamic Load Capacity (lb)
5782
Lubrication
Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Inner Race Length (in)
1.75
Expansion
No
Angle of Misalignment
±2°
Inner Race Heat Treat Method
Zone-Hardened
Internal Clearance
Standard
Misalignment Type
Static Only
Flange Type
3-Bolt Flange Bracket
Pilot Configuration
No Pilot
Outer Ring Land Profile
Tapered
Inch/Metric
Inch
Relubricatable
No
Housing Color
Silver
Housing Material
Stainless Steel
Duty Series
Standard
Overall Height to Inner Ring (in)
1.875
Foot Height
0.5 in
Speed [Max]
2000 rpm
Length Through Bore (in)
1.75
Collar OD (in)
2.56
Radial Dynamic Load Capacity
5782 lb
Replaceable Insert
Yes
Housing Construction
One Piece
Overall Width (in)
3.75
Maximum Operating Temperature
220
Bore Size
1.438 in
Housing Base
Solid
Bore Shape
Straight
Insert Material
52100 Bearing Steel, Phosphorus Nickel Coated
Operating Temperature [Max]
220 °F
Seal Type
Triple Lip Contact
Measure Units
Inch
Collar O.D.
2.56 in
Overall Height
6.12 in
Bolt Center-to-Center Length (in)
2
Housing Width (in)
3.75
Foot Height (in)
0.5
Bolt Size (in)
0.5000
Weight
3.97 LB
EAN or UPC
662461377659
