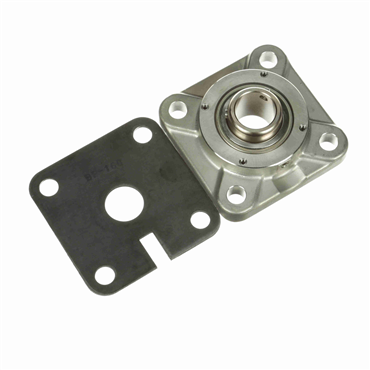

High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
Solid construction with machined base was designed for minimal gaps and no fillers
Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
USDA H1 complaint food grade grease
Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity & ball path instead of around a lubrication groove, prevents outer ring rotation.
options
Corrosion Resistant - Reduced Maintenance - Lubed for Life
Foot Height (in)
0.53125
Series
CRBFS
Bolt Center-to-Center Length
2.75 in
Measure Units
Inch
Retainer Type
Land Riding
Locking Type
Set Screws
Centerline to Front Face (in)
0.8125
Bearing Type
Ball Bearing
Duty Series
Standard
Pilot Configuration
No Pilot
Insert Material
52100 Bearing Steel, Phosphorus Nickel Coated
Operating Temperature [Max]
220 °F
Housing Color
Silver
Overall Height (in)
1.4375
Shaft Dia.
1 in
Outer Ring Land Profile
Tapered
Insert No.
PN-16
Certifications
IP69K
Housing Base
Solid
Special Features
Reduced Maintenance
Housing Material
Stainless Steel
Mounted Unit Duty
Standard Duty
Bolt Center-to-Center Length (in)
2.7500
Inner Race Length (in)
1.375
T Core
2.375
Lubrication
Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Bolt Size
0.438 in
Flange Type
4-Bolt Flange
Housing Construction
One Piece
Internal Clearance
Standard
Inner Ring O.D.
1.375 in
Replaceable Insert
Yes
Centerline to Front Face
0.813 in
Overall Height
1.438 in
Bore Size
1 in
Seal Type
Triple Lip Contact
Inner Race Length
1.375 in
Bearing Insert Coating
Phosphorus Nickel
Speed [Max]
2700 rpm
Inner Race Heat Treat Method
Zone-Hardened
Backside Shield/Seal
Backside Shield included loose in box
Maximum Operating Temperature
220
Bolt Size (in)
0.4375
Inch/Metric
Inch
Bearing Design
Non-Expansion
Locking Device
Setscrew Locking Collar
Platform
PN Gold
Inner Ring OD (in)
1.375
Bore Shape
Straight
Angle of Misalignment
±2°
Foot Height
0.531 in
End Cap
Yes
Misalignment Type
Static Only
Expansion
No
Bore Size - Inch
1
Relubricatable
No
Weight
2.4 LB
EAN or UPC
662461374320
