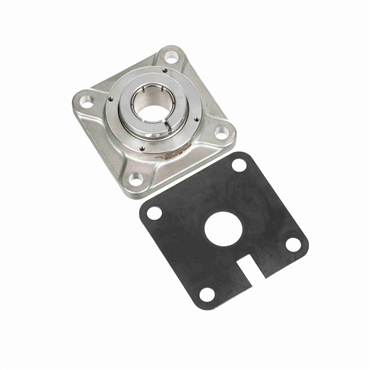

Stainless Steel 4-Bolt Flange Concentric Lock Standard Duty Flange Unit

CRBFS-PN20RT RMW

Stainless Steel 4-Bolt Flange Concentric Lock Standard Duty Flange Unit
Item #101680024
  • 4-Bolt Flange Type
  • Stainless Steel Housing Material
  • Phosphorus Nickel Bearing Insert Coating
  • Concentric Locking Type
Stainless Steel 4-Bolt Flange Concentric Lock Standard Duty Flange Unit
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 4-Bolt Flange Type
  • Stainless Steel Housing Material
  • Phosphorus Nickel Bearing Insert Coating
  • Concentric Locking Type

features

  • USDA H1 complaint food grade grease
  • Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
  • High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
  • High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
  • High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
  • Solid construction with machined base was designed for minimal gaps and no fillers
  • Skwezloc® Concentric locking for near perfect concentricity with fluoropolymer coated collar and corrosion resistant cap screw
  • Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity & ball path instead of around a lubrication groove, prevents outer ring rotation.
  • Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

options

  • Corrosion Resistant - Reduced Maintenance - Lubed for Life
Locking Device Skwezloc® Concentric Collar
Collar OD (in) 2.1875
Mounted Unit Duty Standard Duty
Insert No. PN-20RT
Bearing Design Non-Expansion
Retainer Type Land Riding
Collar O.D. 2.188 in
Bolt Size (in) 0.4375
Replaceable Insert Yes
Lubrication Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Bore Size 1.25 in
Flange Type 4-Bolt Flange
Shaft Dia. 1.25 in
Bearing Type Ball Bearing
Bolt Center-to-Center Length 3.25 in
Internal Clearance Standard
Inner Race Length 1.563 in
Bore Size - Inch 1.25
End Cap Yes
Housing Material Stainless Steel
Housing Color Silver
Locking Type Concentric
Seal Type Triple Lip Contact
Backside Shield/Seal Backside Shield included loose in box
Operating Temperature [Max] 220 °F
Insert Material 52100 Bearing Steel, Phosphorus Nickel Coated
Speed [Max] 2300 rpm
Housing Base Solid
Bearing Insert Coating Phosphorus Nickel
Housing Construction One Piece
Outer Ring Land Profile Tapered
Measure Units Inch
Inner Race Heat Treat Method Zone-Hardened
Foot Height 0.531 in
Certifications IP69K
Misalignment Type Static Only
Maximum Operating Temperature 220
Overall Height 1.625 in
Inner Race Length (in) 1.5625
Inch/Metric Inch
Bolt Center-to-Center Length (in) 3.2500
Expansion No
Platform PN Gold
Relubricatable No
Bolt Size 0.438 in
T Core 2.875
Pilot Configuration No Pilot
Bore Shape Straight
Duty Series Standard
Centerline to Front Face 0.938 in
Centerline to Front Face (in) 0.9375
Angle of Misalignment ±2°
Overall Height (in) 1.625
Series CRBFS
Foot Height (in) 0.53125
Special Features Reduced Maintenance
Weight 3.385 LB
EAN or UPC 662461368794
