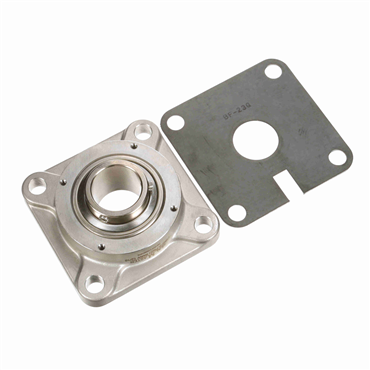

High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
Solid construction with machined base was designed for minimal gaps and no fillers
Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity & ball path instead of around a lubrication groove, prevents outer ring rotation.
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
options
Corrosion Resistant - Reduced Maintenance - Lubed for Life
Shaft Dia.
1.4375 in
Overall Length
4.625 in
Flange Type
4-Bolt Flange
Bolt Size (in)
0.5000
Replaceable Insert
Yes
Foot Height
0.578 in
Pilot Configuration
No Pilot
Housing Construction
One Piece
Inner Ring O.D.
1.859 in
Housing Width
1.75 in
Measure Units
Inch
Retainer Type
Land Riding
Certifications
IP69K
Bearing Design
Non-Expansion
Locking Device
Setscrew Locking Collar
Maximum Operating Temperature
220
Relubricatable
No
Series
CRBFS
Centerline to Front Face
1 in
Overall Length (in)
4.625
Inner Ring OD (in)
1.859375
Length Through Bore (in)
1.69
Overall Width
4.625 in
Backside Shield/Seal
Backside Shield included loose in box
Inch/Metric
Inch
Foot Height (in)
0.578125
Bore Size - Inch
1.438
Duty Series
Standard
Bearing Insert Coating
Phosphorus Nickel
Special Features
Reduced Maintenance
Bore Size
1.438 in
Speed [Max]
2000 rpm
Bolt Size
0.5 in
Mounted Unit Duty
Standard Duty
Overall Height (in)
1.75
Bearing Type
Ball Bearing
Platform
PN Gold
Operating Temperature [Max]
220 °F
Insert Material
52100 Bearing Steel, Phosphorus Nickel Coated
Overall Width (in)
4.625
Bolt Center-to-Center Length (in)
3.6250
Overall Height
1.75 in
Lubrication
Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Misalignment Type
Static Only
T Core
3.3130000000000002
Inner Race Heat Treat Method
Zone-Hardened
Angle of Misalignment
±2°
Expansion
No
Radial Dynamic Load Capacity
5782 lb
Inner Race Length (in)
1.69
Bore Shape
Straight
Insert No.
PN-23
Housing Color
Silver
Centerline to Front Face (in)
1
Radial Static Load Capacity (lb)
3493
Housing Base
Solid
Radial Dynamic Load Capacity (lb)
5782
Internal Clearance
Standard
Locking Type
Set Screws
End Cap
Yes
Housing Material
Stainless Steel
Outer Ring Land Profile
Tapered
Seal Type
Triple Lip Contact
Housing Width (in)
1.75
Bolt Center-to-Center Length
3.625 in
Inner Race Length
1.69 in
Weight
4.0 LB
EAN or UPC
662461374382
