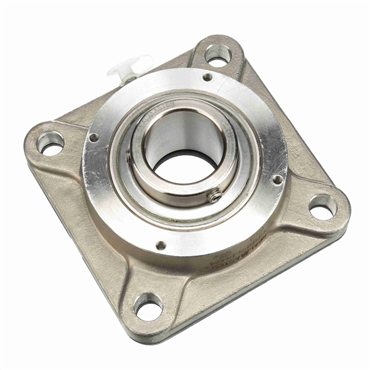

High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
Solid construction with machined base was designed for minimal gaps and no fillers
Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity & ball path instead of around a lubrication groove, prevents outer ring rotation.
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
USDA H1 complaint food grade grease
options
Corrosion Resistant
Insert Material
52100 Bearing Steel, Phosphorus Nickel Coated
Bearing Insert Coating
Phosphorus Nickel
Duty Series
Standard
Radial Dynamic Load Capacity
7340 lb
Bearing Type
Ball Bearing
Measure Units
Inch
Housing Color
Silver
Flange Type
4-Bolt Flange
Inner Ring OD (in)
2.6875
Bolt Size
0.5 in
Maximum Operating Temperature
220
Overall Width
5.125 in
Inner Ring O.D.
2.688 in
Inner Race Length
1.94 in
Housing Construction
One Piece
Overall Width (in)
5.125
Shaft Dia.
1.5 in
Bearing Design
Non-Expansion
Length Through Bore (in)
1.94
Bore Shape
Straight
Radial Static Load Capacity (lb)
4467
Radial Dynamic Load Capacity (lb)
7340
Foot Height (in)
0.5625
Relubricatable
Yes
Replaceable Insert
Yes
Seal Type
Triple Lip Contact
End Cap
Yes
Bore Size
1.5 in
Bore Size - Inch
1.5
Inner Race Length (in)
1.94
Housing Base
Solid
Backside Shield/Seal
Backside Shield included loose in box
Angle of Misalignment
±2°
Pilot Configuration
No Pilot
Lubrication
Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Bolt Center-to-Center Length (in)
4
Overall Length
5.125 in
Housing Width (in)
2.078
Foot Height
0.563 in
Misalignment Type
Static Only
Speed [Max]
1750 rpm
Housing Material
Stainless Steel
Housing Width
2.078 in
Overall Height (in)
2.0781
Platform
PN Gold
Locking Type
Set Screws
Operating Temperature [Max]
220 °F
Centerline to Front Face
1.25 in
Inch/Metric
Inch
Insert No.
PN-24
Mounted Unit Duty
Standard Duty
Retainer Type
Land Riding
Locking Device
Setscrew Locking Collar
Bolt Size (in)
0.5000
Outer Ring Land Profile
Standard
Overall Length (in)
5.125
Overall Height
2.078 in
Inner Race Heat Treat Method
Zone-Hardened
T Core
3.5
Bolt Center-to-Center Length
4 in
Internal Clearance
Standard
Series
CRBFS
Expansion
No
Certifications
IP69K
Centerline to Front Face (in)
1.25
Weight
5.45 LB
EAN or UPC
662461341322
