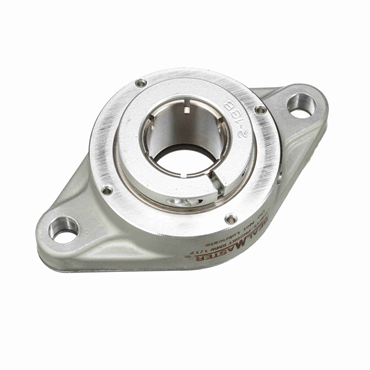

High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
Solid construction with machined base was designed for minimal gaps and no fillers
Skwezloc® Concentric locking for near perfect concentricity with fluoropolymer coated collar and corrosion resistant cap screw
Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity & ball path instead of around a lubrication groove, prevents outer ring rotation.
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
USDA H1 complaint food grade grease
options
Corrosion Resistant
Bearing Design
Non-Expansion
Insert No.
PN-206T
Overall Length (mm)
141.3
Housing Base
Solid
Seal Type
Triple Lip Contact
Series
CRBFTS
Duty Series
Standard
Centerline to Front Face
2.6 in, 66.7 mm
Foot Height (mm)
13.5
Bearing Insert Coating
Phosphorus Nickel
Measure Units
Metric
Speed [Max]
2300 rpm
Backside Shield/Seal
Backside Shield included loose in box
Locking Type
Concentric
Retainer Type
Land Riding
Bolt Size (in)
0.4375
Certifications
IP69K
Bore Shape
Straight
Bore Size
30 mm
Platform
PN Gold
Bore Size - Metric
30
Overall Height to Inner Ring
1.622 in, 41.2 mm
Insert Material
52100 Bearing Steel, Phosphorus Nickel Coated
Inner Race Heat Treat Method
Zone-Hardened
Bolt Size
0.438 in
Misalignment Type
Static Only
Housing Color
Silver
Overall Height to Inner Ring (mm)
41.2
Internal Clearance
Standard
Angle of Misalignment
±2°
Replaceable Insert
Yes
Bolt Center-to-Center Length
116.7 mm
End Cap
Yes
Housing Material
Stainless Steel
Housing Construction
One Piece
Operating Temperature [Max]
220 °F
Overall Length
141.3 mm
Outer Ring Land Profile
Standard
Maximum Operating Temperature
220
Centerline to Front Face (in)
2.6
Locking Device
Skwezloc® Concentric Collar
Lubrication
Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Pilot Configuration
No Pilot
Bearing Type
Ball Bearing
Overall Height to Inner Ring (in)
1.622
Relubricatable
Yes
Inch/Metric
Metric
Flange Type
2-Bolt Flange
Mounted Unit Duty
Standard Duty
Foot Height (in)
0.531
Centerline to Front Face (mm)
66.7
Bolt Center-to-Center Length (mm)
116.7
Foot Height
0.531 in, 13.5 mm
Shaft Dia.
30 mm
Expansion
No
Weight
3.25 LB
EAN or UPC
662461372432
