CRBFTS-PN20R

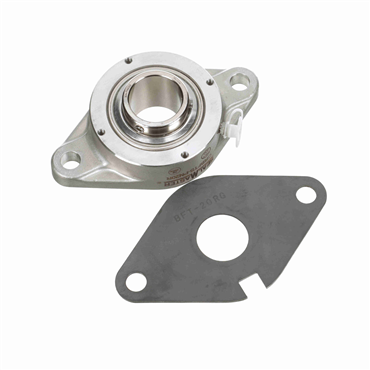

Stainless Steel 2-Bolt Flange Set Screws Lock Standard Duty Flange Unit

Item #101999510

Auto Replenish

each One-time purchase

Product Details

High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
Solid construction with machined base was designed for minimal gaps and no fillers
Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity & ball path instead of around a lubrication groove, prevents outer ring rotation.
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
USDA H1 complaint food grade grease

Specifications

Pilot Configuration	No Pilot
Misalignment Type	Static Only
Bolt Center-to-Center Length	4.594 in
Certifications	IP69K
Bearing Type	Ball Bearing
Shaft Dia.	1.25 in
Bore Size - Inch	1.25
Housing Material	Stainless Steel
Retainer Type	Land Riding
Overall Height to Inner Ring (in)	1.563
Outer Ring Land Profile	Standard
Inner Ring O.D.	1.594 in
Angle of Misalignment	±2°
Flange Type	2-Bolt Flange
Overall Height to Inner Ring	1.563 in
Housing Base	Solid
Relubricatable	Yes
Housing Construction	One Piece
Expansion	No
Overall Length	5.563 in
Backside Shield/Seal	Backside Shield included loose in box
Foot Height	0.531 in
Bore Shape	Straight
Insert Material	52100 Bearing Steel, Phosphorus Nickel Coated
Replaceable Insert	Yes
Bearing Design	Non-Expansion
Bolt Size	0.438 in
Series	CRBFTS
Bolt Size (in)	0.4375
Operating Temperature [Max]	220 °F
Speed [Max]	2300 rpm
Maximum Operating Temperature	220
Lubrication	Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Bearing Insert Coating	Phosphorus Nickel
Housing Color	Silver
Inner Ring OD (in)	1.594
Bore Size	1.25 in
Inch/Metric	Inch
Overall Length (in)	5.563
Bolt Center-to-Center Length (in)	4.5940
End Cap	Yes
Duty Series	Standard
Foot Height (in)	0.531
Internal Clearance	Standard
Insert No.	PN-20R
Measure Units	Inch
Inner Race Heat Treat Method	Zone-Hardened
Centerline to Front Face (in)	0.875
Centerline to Front Face	0.875 in
Mounted Unit Duty	Standard Duty
Locking Type	Set Screws
Seal Type	Triple Lip Contact
Platform	PN Gold
Weight	2.2 LB
EAN or UPC	662461341155
