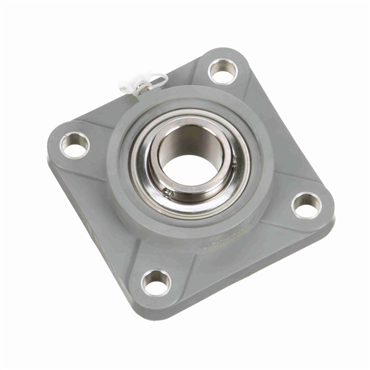

High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
High strength composite with reinforced stainless steel bolt ferrules for high load capacity and increased strength around the bolt holes.
Solid construction with machined base was designed for minimal gaps and no fillers
Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity & ball path instead of around a lubrication groove, prevents outer ring rotation.
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
USDA H1 complaint food grade grease
options
Corrosion Resistant
End Cap
Yes
Duty Series
Standard
Inner Race Length
1.5 in
Seal Type
Triple Lip Contact
Bolt Size
0.438 in
Bore Shape
Straight
Bolt Center-to-Center Length
3.25 in
Inner Race Heat Treat Method
Zone-Hardened
Retainer Type
Land Riding
Relubricatable
Yes
Housing Color
Light Gray
Flange Type
4-Bolt Flange
Bolt Center-to-Center Length (in)
3.2500
Speed [Max]
2300 rpm
Foot Height (in)
0.53125
Bearing Design
Non-Expansion
Certifications
IP69K
Bearing Type
Ball Bearing
Inner Ring OD (in)
1.59375
Centerline to Front Face
0.875 in
Backside Shield/Seal
Optional backside shield available order separate
Misalignment Type
Static Only
Insert No.
PN-19
Overall Height (in)
1.5625
Inner Ring O.D.
1.594 in
Shaft Dia.
1.1875 in
Mounted Unit Duty
Standard Duty
Operating Temperature [Max]
220 °F
Angle of Misalignment
±2°
Outer Ring Land Profile
Standard
Expansion
No
Bore Size
1.188 in
T Core
2.5630000000000002
Series
CRFC-PN
Bore Size - Inch
1.188
Pilot Configuration
No Pilot
Centerline to Front Face (in)
0.875
Housing Construction
One Piece
Insert Material
52100 Bearing Steel, Phosphorus Nickel Coated
Housing Material
Composite
Measure Units
Inch
Internal Clearance
Standard
Overall Height
1.563 in
Inch/Metric
Inch
Maximum Operating Temperature
220
Bolt Size (in)
0.4375
Locking Device
Setscrew Locking Collar
Lubrication
Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Locking Type
Set Screws
Housing Base
Solid
Replaceable Insert
Yes
Platform
PN Gold
Bearing Insert Coating
Phosphorus Nickel
Inner Race Length (in)
1.5
Foot Height
0.531 in
Weight
1.543 LB
EAN or UPC
662461338650
