CRFC-PN19T RMW

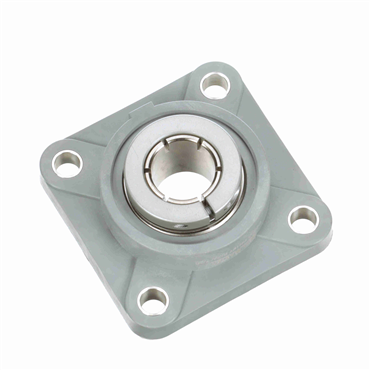

Composite 4-Bolt Flange Concentric Lock Standard Duty Flange Unit

Item #102319770

Auto Replenish

each One-time purchase

Product Details

Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
USDA H1 complaint food grade grease
Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity & ball path instead of around a lubrication groove, prevents outer ring rotation.
Skwezloc® Concentric locking for near perfect concentricity with fluoropolymer coated collar and corrosion resistant cap screw
Solid construction with machined base was designed for minimal gaps and no fillers
High strength composite with reinforced stainless steel bolt ferrules for high load capacity and increased strength around the bolt holes.
High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Specifications

Backside Shield/Seal	Backside Shield included loose in box
Angle of Misalignment	±2°
Series	CRFC-PN
Internal Clearance	Standard
Pilot Configuration	No Pilot
Insert Material	52100 Bearing Steel, Phosphorus Nickel Coated
Bore Shape	Straight
Shaft Dia.	1.1875 in
Inner Race Length (in)	1.5
Housing Color	Light Gray
Locking Device	Skwezloc® Concentric Collar
Inner Race Length	1.5 in
Operating Temperature [Max]	220 °F
Replaceable Insert	Yes
Relubricatable	No
Maximum Operating Temperature	220
Foot Height	0.531 in
Special Features	Reduced Maintenance
Inner Race Heat Treat Method	Zone-Hardened
Misalignment Type	Static Only
Seal Type	Triple Lip Contact
Collar OD (in)	2.1875
Bolt Center-to-Center Length (in)	3.2500
Measure Units	Inch
Inch/Metric	Inch
Overall Height	1.563 in
Insert No.	PN-19T
Housing Construction	One Piece
Flange Type	4-Bolt Flange
Bore Size - Inch	1.188
Centerline to Front Face (in)	0.875
T Core	2.5630000000000002
Bearing Type	Ball Bearing
Expansion	No
Bolt Size (in)	0.4375
Platform	PN Gold
Locking Type	Concentric
Overall Height (in)	1.5625
Bearing Insert Coating	Phosphorus Nickel
Bolt Size	0.438 in
Foot Height (in)	0.53125
Housing Material	Composite
Outer Ring Land Profile	Tapered
Duty Series	Standard
Centerline to Front Face	0.875 in
Certifications	IP69K
Housing Base	Solid
End Cap	Yes
Bore Size	1.188 in
Collar O.D.	2.188 in
Speed [Max]	2300 rpm
Retainer Type	Land Riding
Bolt Center-to-Center Length	3.25 in
Mounted Unit Duty	Standard Duty
Bearing Design	Non-Expansion
Lubrication	Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Weight	1.543 LB
EAN or UPC	662461379899
