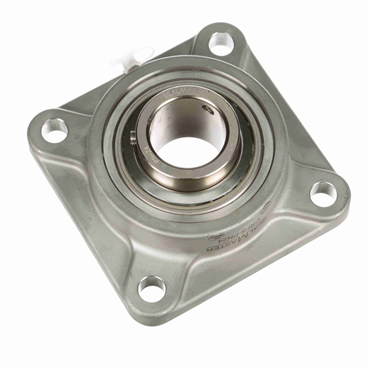

High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
Solid construction with machined base was designed for minimal gaps and no fillers
Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity & ball path instead of around a lubrication groove, prevents outer ring rotation.
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
USDA H1 complaint food grade grease
options
Corrosion Resistant
Flange Type
4-Bolt Flange
Radial Dynamic Load Capacity
7340 lb
Inch/Metric
Inch
Retainer Type
Land Riding
Bearing Insert Coating
Phosphorus Nickel
End Cap
Yes
Housing Width (in)
5.125
Angle of Misalignment
±2°
Overall Width
5.125 in
Certifications
IP69K
Housing Width
5.125 in
Bore Size - Inch
1.5
Overall Length (in)
5.125
Overall Height (in)
2.0156
Bearing Design
Non-Expansion
Bolt Size (in)
0.5000
Centerline to Front Face
1.188 in
Bearing Type
Ball Bearing
Operating Temperature [Max]
220 °F
Housing Material
Stainless Steel
Overall Width (in)
5.125
Bore Size
1.5 in
Centerline to Front Face (in)
1.1875
Inner Ring O.D.
2.063 in
Measure Units
Inch
Bolt Center-to-Center Length
4 in
Locking Device
Setscrew Locking Collar
Inner Race Length (in)
1.94
Radial Static Load Capacity (lb)
4467
Locking Type
Set Screws
Pilot Configuration
No Pilot
Internal Clearance
Standard
Speed [Max]
1750 rpm
Foot Height
0.563 in
Bolt Center-to-Center Length (in)
4
Inner Race Length
1.94 in
Foot Height (in)
0.5625
Housing Base
Solid
Duty Series
Standard
Expansion
No
Housing Construction
One Piece
Backside Shield/Seal
Optional backside shield available order separate
Mounted Unit Duty
Standard Duty
Bolt Size
0.5 in
Overall Length
5.125 in
T Core
3.5
Inner Ring OD (in)
2.0625
Length Through Bore (in)
1.94
Bore Shape
Straight
Housing Color
Silver
Outer Ring Land Profile
Standard
Maximum Operating Temperature
220
Misalignment Type
Static Only
Insert Material
52100 Bearing Steel, Phosphorus Nickel Coated
Replaceable Insert
Yes
Relubricatable
Yes
Platform
PN Gold
Lubrication
Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Series
CRFS-PN
Insert No.
PN-24
Overall Height
2.016 in
Radial Dynamic Load Capacity (lb)
7340
Shaft Dia.
1.5 in
Seal Type
Triple Lip Contact
Inner Race Heat Treat Method
Zone-Hardened
Weight
5.5 LB
EAN or UPC
662461335765
