CRFS-PN32

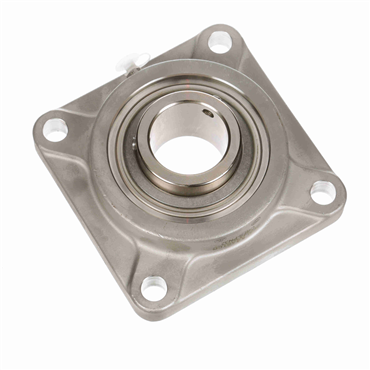

Stainless Steel 4-Bolt Flange Set Screws Lock Standard Duty Flange Unit

Item #101997373

Auto Replenish

each One-time purchase

Product Details

High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
Solid construction with machined base was designed for minimal gaps and no fillers
Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity & ball path instead of around a lubrication groove, prevents outer ring rotation.
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
USDA H1 complaint food grade grease

Specifications

Series	CRFS-PN
Inner Ring O.D.	2.719 in
Seal Type	Triple Lip Contact
Flange Type	4-Bolt Flange
Shaft Dia.	2 in
Bolt Size	0.625 in
Bearing Insert Coating	Phosphorus Nickel
Insert Material	52100 Bearing Steel, Phosphorus Nickel Coated
Housing Material	Stainless Steel
Overall Height (in)	2.3125
Certifications	IP69K
Foot Height	0.813 in
Bore Size	2 in
Internal Clearance	Standard
Bearing Type	Ball Bearing
Lubrication	Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Misalignment Type	Static Only
Centerline to Front Face	1.313 in
Expansion	No
Operating Temperature [Max]	220 °F
Pilot Configuration	No Pilot
Retainer Type	Land Riding
Bolt Center-to-Center Length	5.125 in
Inner Race Length	2.188 in
Inner Race Heat Treat Method	Zone-Hardened
Angle of Misalignment	±2°
Outer Ring Land Profile	Standard
T Core	4.25
Bearing Design	Non-Expansion
Housing Color	Silver
Replaceable Insert	Yes
Overall Height	2.313 in
Insert No.	PN-32
Inner Ring OD (in)	2.71875
Inch/Metric	Inch
Bore Size - Inch	2
Bolt Center-to-Center Length (in)	5.1250
Locking Type	Set Screws
Housing Base	Solid
Duty Series	Standard
Housing Construction	One Piece
Relubricatable	Yes
Centerline to Front Face (in)	1.3125
Locking Device	Setscrew Locking Collar
End Cap	Yes
Bore Shape	Straight
Inner Race Length (in)	2.1875
Platform	PN Gold
Speed [Max]	1350 rpm
Measure Units	Inch
Foot Height (in)	0.8125
Bolt Size (in)	0.625
Maximum Operating Temperature	220
Mounted Unit Duty	Standard Duty
Weight	11.09 LB
EAN or UPC	662461337516
