CRFS-PN35

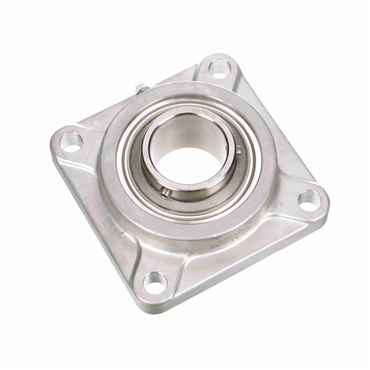

Stainless Steel 4-Bolt Flange Set Screws Lock Standard Duty Flange Unit

Item #101995097

Auto Replenish

each One-time purchase

Product Details

High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
Solid construction with machined base was designed for minimal gaps and no fillers
Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity & ball path instead of around a lubrication groove, prevents outer ring rotation.
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
USDA H1 complaint food grade grease

Specifications

Bore Size - Inch	2.188
Insert Material	52100 Bearing Steel, Phosphorus Nickel Coated
Misalignment Type	Static Only
Platform	PN Gold
Overall Height (in)	2.3125
Bore Size	2.188 in
Locking Device	Setscrew Locking Collar
Backside Shield/Seal	Optional backside shield available order separate
Duty Series	Standard
Series	CRFS-PN
Seal Type	Triple Lip Contact
Bearing Type	Ball Bearing
Lubrication	Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Bolt Size (in)	0.625
Insert No.	PN-35
Bolt Center-to-Center Length (in)	5.1250
Inner Ring OD (in)	2.71875
Housing Construction	One Piece
Measure Units	Inch
Overall Height	2.313 in
Bearing Design	Non-Expansion
Expansion	No
Replaceable Insert	Yes
Operating Temperature [Max]	220 °F
Foot Height	0.813 in
Outer Ring Land Profile	Standard
Bolt Size	0.625 in
Speed [Max]	1350 rpm
Inner Ring O.D.	2.719 in
Internal Clearance	Standard
Inner Race Length	2.188 in
Housing Material	Stainless Steel
T Core	4.25
Mounted Unit Duty	Standard Duty
Housing Base	Solid
Shaft Dia.	2.1875 in
Centerline to Front Face	1.313 in
Bolt Center-to-Center Length	5.125 in
Housing Color	Silver
Inner Race Length (in)	2.1875
Centerline to Front Face (in)	1.3125
Bore Shape	Straight
Retainer Type	Land Riding
Relubricatable	Yes
Inch/Metric	Inch
Maximum Operating Temperature	220
Flange Type	4-Bolt Flange
Locking Type	Set Screws
Inner Race Heat Treat Method	Zone-Hardened
Pilot Configuration	No Pilot
Bearing Insert Coating	Phosphorus Nickel
Angle of Misalignment	±2°
Foot Height (in)	0.8125
Certifications	IP69K
End Cap	Yes
Weight	10.5 LB
EAN or UPC	662461337530
