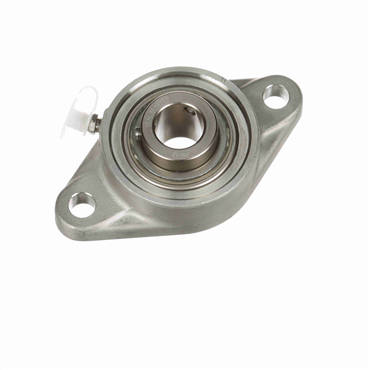

High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
Solid construction with machined base was designed for minimal gaps and no fillers
Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity & ball path instead of around a lubrication groove, prevents outer ring rotation.
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
USDA H1 complaint food grade grease
options
Corrosion Resistant
Backside Shield/Seal
Optional backside shield available order separate
Bolt Center-to-Center Length (in)
3.5310
Relubricatable
Yes
Radial Dynamic Load Capacity
2611 lb
Locking Device
Setscrew Locking Collar
Shaft Dia.
0.75 in
Bearing Type
Ball Bearing
Insert Material
52100 Bearing Steel, Phosphorus Nickel Coated
Speed [Max]
3100 rpm
Housing Base
Solid
Internal Clearance
Standard
Bearing Insert Coating
Phosphorus Nickel
Maximum Operating Temperature
220
Replaceable Insert
Yes
Platform
PN Gold
Overall Length
4.406 in
Housing Material
Stainless Steel
Centerline to Front Face (in)
0.719
Flange Type
2-Bolt Flange
Seal Type
Triple Lip Contact
Angle of Misalignment
±2°
Bolt Hole Spacing
3 17/32 in
Bore Size - Inch
0.75
Inner Ring O.D.
1.188 in
Inner Race Heat Treat Method
Zone-Hardened
Misalignment Type
Static Only
Inner Ring OD (in)
1.188
Duty Series
Standard
Overall Height to Inner Ring (in)
1.281
Bearing Design
Non-Expansion
Overall Length (in)
4.406
Bolt Center-to-Center Length
3.531 in
Measure Units
Inch
Foot Height (in)
0.438
Series
CRFTS
Bolt Circle Dia.
3 17/32 in
Operating Temperature [Max]
220 °F
Housing Length
4 13/32 in
Insert No.
PN-12
Bore Size
0.75 in
Outer Ring Land Profile
Standard
Housing Construction
One Piece
Locking Type
Set Screws
End Type
Open End
Certifications
IP69K
Retainer Type
Land Riding
Centerline to Front Face
0.719 in
Mounted Unit Duty
Standard Duty
Pilot Configuration
No Pilot
Expansion
No
Bolt Size
0.375 in
Lubrication
Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Bore Shape
Straight
End Cap
Yes
Bolt Size (in)
0.375
Overall Height to Inner Ring
1.281 in
Foot Height
0.438 in
Housing Color
Silver
Inch/Metric
Inch
Weight
1.2 LB
EAN or UPC
662461336984
