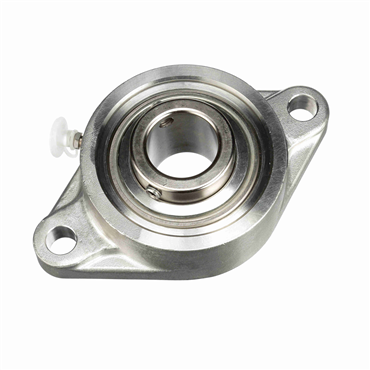

High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
Solid construction with machined base was designed for minimal gaps and no fillers
Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity & ball path instead of around a lubrication groove, prevents outer ring rotation.
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
USDA H1 complaint food grade grease
options
Corrosion Resistant
Angle of Misalignment
±2°
Bearing Design
Non-Expansion
Foot Height (in)
0.563
Overall Height
1.75 in
Bolt Hole Spacing
5 1/8 in
Housing Base
Solid
Bolt Size (in)
0.5000
Overall Height to Inner Ring
1.75 in
Mounted Unit Duty
Standard Duty
Housing Length
6 1/8 in
Outer Ring Land Profile
Standard
Internal Clearance
Standard
Pilot Configuration
No Pilot
Bearing Insert Coating
Phosphorus Nickel
End Type
Open End
Bolt Center-to-Center Length (in)
5.1250
Inner Ring OD (in)
1.859
Speed [Max]
2000 rpm
Overall Height to Inner Ring (in)
1.75
Bearing Type
Ball Bearing
Expansion
No
Overall Height (in)
1.75
Foot Height
0.563 in
Housing Construction
One Piece
Certifications
IP69K
Radial Dynamic Load Capacity (lb)
5782
Housing Width (in)
3.75
Inner Race Heat Treat Method
Zone-Hardened
Lubrication
Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Operating Temperature [Max]
220 °F
Replaceable Insert
Yes
Series
CRFTS
Relubricatable
Yes
Housing Color
Silver
Housing Material
Stainless Steel
Platform
PN Gold
Inner Ring O.D.
1.859 in
End Cap
Yes
Insert Material
52100 Bearing Steel, Phosphorus Nickel Coated
Bore Size
1.25 in
Housing Width
3.75 in
Bolt Size
0.5 in
Bolt Center-to-Center Length
5.125 in
Overall Width (in)
3.75
Flange Type
2-Bolt Flange
Bolt Circle Dia.
5 1/8 in
Inner Race Length (in)
1.859
Inner Race Length
1.859 in
Overall Width
3.75 in
Length Through Bore (in)
1.859
Maximum Operating Temperature
220
Bore Size - Inch
1.25
Measure Units
Inch
Overall Length
6.125 in
Inch/Metric
Inch
Retainer Type
Land Riding
Locking Type
Set Screws
Bore Shape
Straight
Backside Shield/Seal
Optional backside shield available order separate
Duty Series
Standard
Centerline to Front Face (in)
1
Locking Device
Setscrew Locking Collar
Shaft Dia.
1.25 in
Insert No.
PN-20
Overall Length (in)
6.125
Radial Dynamic Load Capacity
5782 lb
Radial Static Load Capacity (lb)
3493
Seal Type
Triple Lip Contact
Misalignment Type
Static Only
Centerline to Front Face
1 in
Weight
3.475 LB
EAN or UPC
662461337004
