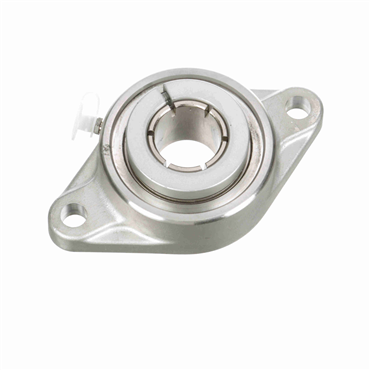

High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
Solid construction with machined base was designed for minimal gaps and no fillers
Skwezloc® Concentric locking for near perfect concentricity with fluoropolymer coated collar and corrosion resistant cap screw
Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity & ball path instead of around a lubrication groove, prevents outer ring rotation.
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
USDA H1 complaint food grade grease
High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
options
Corrosion Resistant
Flange Type
2-Bolt Flange
Platform
PN Gold
End Cap
Yes
Housing Construction
One Piece
Centerline to Front Face
2.6 in, 66.7 mm
Bearing Type
Ball Bearing
Bolt Size (in)
0.4375
Lubrication
Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Internal Clearance
Standard
Insert Material
52100 Bearing Steel, Phosphorus Nickel Coated
Centerline to Front Face (mm)
66.7
Bearing Design
Non-Expansion
Overall Height to Inner Ring
1.563 in, 39.7 mm
Foot Height
0.531 in, 13.5 mm
Expansion
No
Bore Shape
Straight
Bore Size
30 mm
Bolt Circle Dia.
4 19/32 in
Backside Shield/Seal
Optional backside shield available order separate
Measure Units
Metric
Inner Race Heat Treat Method
Zone-Hardened
Housing Base
Solid
Seal Type
Triple Lip Contact
Bolt Size
0.438 in
Overall Length (mm)
141.3
Bolt Hole Spacing
4 19/32 in
Mounted Unit Duty
Standard Duty
Misalignment Type
Static Only
Bore Size - Metric
30
Centerline to Front Face (in)
2.6
Housing Material
Stainless Steel
Duty Series
Standard
Speed [Max]
2300 rpm
Foot Height (in)
0.531
Overall Height to Inner Ring (in)
1.563
Locking Device
Skwezloc® Concentric Collar
Housing Length
5 9/16 in
Bearing Insert Coating
Phosphorus Nickel
Housing Color
Silver
Operating Temperature [Max]
220 °F
Bolt Center-to-Center Length (mm)
116.7
Relubricatable
Yes
Shaft Dia.
30 mm
Insert No.
PN-206T
Replaceable Insert
Yes
Series
CRFTS
Pilot Configuration
No Pilot
Radial Dynamic Load Capacity
4381 lb
Maximum Operating Temperature
220
Angle of Misalignment
±2°
Bolt Center-to-Center Length
116.7 mm
Certifications
IP69K
Locking Type
Concentric
Outer Ring Land Profile
Standard
End Type
Open End
Foot Height (mm)
13.5
Overall Length
141.3 mm
Overall Height to Inner Ring (mm)
39.7
Inch/Metric
Metric
Retainer Type
Land Riding
Weight
3.0 LB
EAN or UPC
662461356012
