EFP208BRG ASSY

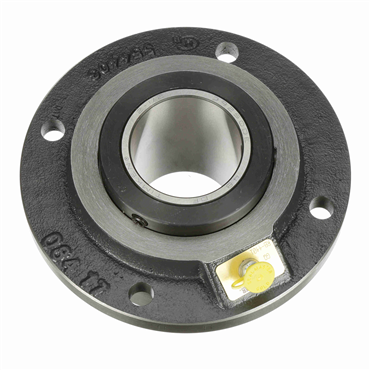

Cast Iron Piloted Flange Double Collar Mount Lock Standard Duty Flange Unit

Item #105118483

Auto Replenish

each One-time purchase

Product Details

Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
Race-mounted felt-lined flinger seal
Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
Powder coat epoxy split cast iron housing

Specifications

Replaceable Insert	No
Operating Temperature [Max]	220 °F
Outer Ring Land Profile	Standard
Bolt Size	0.5 in
Inch/Metric	Inch
Foot Height (in)	0.622
Pilot Diameter (in)	5.5
Bearing Insert Coating	Uncoated
Platform	RPB Series
Measure Units	Inch
Centerline to Front Face	2.31 in
Pilot Diameter	5.5 in
Insert Material	52100 Bearing Steel
Angle of Misalignment	±3°
Retainer Material	Steel
Centerline to Front Face (in)	2.31
Expansion	Yes
Locking Type	Double Collar Mount
Housing Material	Cast Iron
Relubricatable	Yes
Bearing Type	Tapered Roller Bearing
Maximum Operating Temperature	220
Lubrication	Lithium, EP, NLGI#2
Pilot Configuration	With Pilot
Misalignment Type	Static Only
Bolt Size (in)	0.5
Seal Type	Felt Labyrinth
Flange Type	Piloted Flange
Series	RPB Series
Bore Shape	Straight
Housing Construction	Split Two Piece
Housing OD (in)	7.63
Speed [Max]	2000 rpm
Inner Race Length (in)	4
Inner Race Heat Treat Method	Case Carburized Inner Ring
Internal Clearance	Standard
Collar OD (in)	3.94
Housing Color	Gray
Bolt Center Diameter (in)	6.5
End Cap	No
Bore Size	2.5 in
Collar O.D.	3.94 in
Inner Race Length	4 in
Bolt Center Dia.	6.5 in
Bore Size - Inch	2.5
Foot Height	0.622 in
Duty Series	Standard
Housing O.D.	7.63 in
Weight	19.0 LB
EAN or UPC	662288756224
