ESF-24 GCS

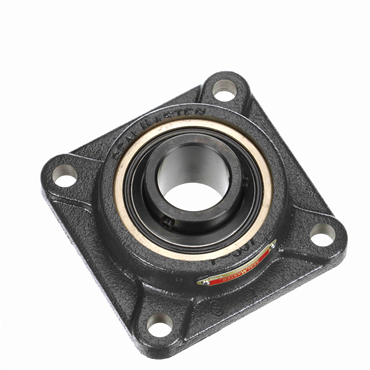

Cast Iron 4-Bolt Flange Set Screws Lock Standard Duty Flange Unit

Item #113129899

Auto Replenish

each One-time purchase

Product Details

Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Felt labyrinth seal and flinger for dry & dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation

Specifications

Bolt Hole Spacing	4 in
Bore Shape	Straight
Overall Height (in)	2.015625
Locking Type	Set Screws
Angle of Misalignment	±2°
Housing Length	5 1/8 in
Misalignment Type	Static Only
Retainer Type	Land Riding
T Core	3.5
Overall Height	2.016 in
Maximum Operating Temperature	220
Inch/Metric	Inch
End Type	Open End
Inner Ring OD (in)	2.0625
Foot Height	0.563 in
Bore Size	1.5 in
Pilot Configuration	No Pilot
Inner Race Heat Treat Method	Zone-Hardened
Insert Material	52100 Bearing Steel, Black Oxided
Foot Height (in)	0.5625
Housing Construction	One Piece
Bearing Insert Coating	Black Oxide
Shaft Dia.	1.5 in
Bolt Center-to-Center Length (in)	4
Lubrication	Special High Temperature NSF H1 Grease
Series	SF
Platform	Gold Line Ball Bearing
Housing Color	Gray
Centerline to Front Face	1.188 in
Seal Type	High Temp Labyrinth
Outer Ring Land Profile	Standard
Housing Material	Cast Iron
Operating Temperature [Max]	220 °F
Bolt Center-to-Center Length	4 in
Centerline to Front Face (in)	1.1875
Internal Clearance	Standard
Relubricatable	No
Housing Base	Solid
Insert No.	AR 2-18 GC
Duty Series	Standard
Locking Device	Setscrew Locking Collar
Replaceable Insert	Yes
Bolt Circle Dia.	N/A
Inner Race Length (in)	1.9375
Mounted Unit Duty	High Temperature Duty
Measure Units	Inch
Expansion	Yes
Bearing Design	Expansion
Inner Race Length	1.938 in
Flange Type	4-Bolt Flange
End Cap	No
Inner Ring O.D.	2.063 in
Speed [Max]	4150 rpm
Bore Size - Inch	1.5
Bearing Type	Ball Bearing
Weight	5.07 LB
EAN or UPC	662461342510
