ESF-24T-AMD

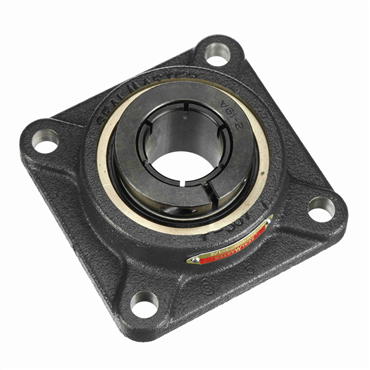

Cast Iron 4-Bolt Flange Concentric Lock Standard Duty Flange Unit

Item #102020054

Auto Replenish

each One-time purchase

Product Details

Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
Skwezloc® concentric locking for near perfect concentricity
Felt labyrinth seal and flinger for dry & dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation

Specifications

Bolt Circle Dia.	N/A
End Cap	No
Overall Height (in)	2.078125
Expansion	Yes
Housing Construction	One Piece
Inch/Metric	Inch
Speed [Max]	5850 rpm
Centerline to Front Face (in)	1.25
Replaceable Insert	Yes
Bearing Design	Expansion
Shaft Dia.	1.5 in
End Type	Open End
Centerline to Front Face	1.25 in
Locking Type	Concentric
Inner Race Heat Treat Method	Zone-Hardened
Pilot Configuration	No Pilot
Duty Series	Standard
Overall Height	2.078 in
Bearing Type	Ball Bearing
Insert No.	AR-2-18T BMG
Operating Temperature [Max]	220 °F
Housing Color	Gray
Lubrication	Lithium Complex Grease With Synthetic Oil
Insert Material	52100 Bearing Steel, Black Oxided
Collar OD (in)	2.6875
Platform	Gold Line Ball Bearing
Retainer Type	Land Riding
Outer Ring Land Profile	Standard
Bearing Insert Coating	Black Oxide
Misalignment Type	Static Only
Bore Size	1.5 in
Bolt Size	0.5 in
Seal Type	High Temp Labyrinth
Internal Clearance	Standard
Measure Units	Inch
Inner Race Length	2 in
Flange Type	4-Bolt Flange
Bolt Hole Spacing	4 in
Maximum Operating Temperature	220
Collar O.D.	2.688 in
Relubricatable	Yes
Housing Length	5 1/8 in
Angle of Misalignment	±2°
Bore Size - Inch	1.5
Housing Material	Cast Iron
Bolt Center-to-Center Length (in)	4
Inner Race Length (in)	2
Foot Height	0.563 in
Bolt Center-to-Center Length	4 in
Foot Height (in)	0.5625
Mounted Unit Duty	Standard Duty
Series	SF
Bore Shape	Straight
Bolt Size (in)	0.5
Housing Base	Solid
T Core	3.875
Weight	5.5 LB
EAN or UPC	662461336274
