ESF-32GCS

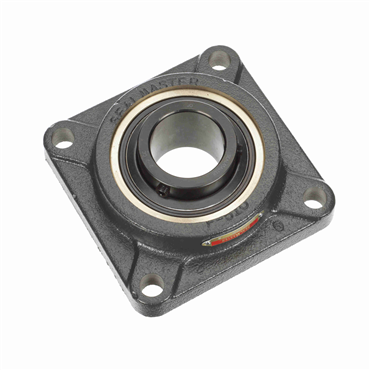

Cast Iron 4-Bolt Flange Set Screws Lock Standard Duty Flange Unit

Item #106341728

Auto Replenish

each One-time purchase

Product Details

Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Felt labyrinth seal and flinger for dry & dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation

Specifications

Duty Series	Standard
Shaft Dia.	2 in
Housing Color	Gray
Housing Construction	One Piece
End Cap	No
Inner Race Heat Treat Method	Zone-Hardened
Inner Race Length (in)	2.1875
Inner Race Length	2.188 in
Inch/Metric	Inch
Lubrication	Special High Temperature NSF H1 Grease
Expansion	Yes
Flange Type	4-Bolt Flange
Maximum Operating Temperature	220
Overall Height (in)	2.3125
Platform	Gold Line Ball Bearing
Inner Ring O.D.	2.719 in
Centerline to Front Face	1.313 in
Housing Base	Solid
Seal Type	High Temp Labyrinth
Bearing Type	Ball Bearing
Foot Height (in)	0.8125
Mounted Unit Duty	High Temperature Duty
Locking Type	Set Screws
Bolt Center-to-Center Length	5.125 in
Housing Material	Cast Iron
Series	SF
Misalignment Type	Static Only
Bore Size	2 in
Operating Temperature [Max]	220 °F
Bolt Hole Spacing	5 1/8 in
Speed [Max]	3250 rpm
Bore Size - Inch	2
Insert No.	AR-2-2 GC
Measure Units	Inch
Bearing Design	Expansion
Retainer Type	Land Riding
Bolt Center-to-Center Length (in)	5.125
End Type	Open End
Bolt Circle Dia.	N/A
Locking Device	Setscrew Locking Collar
Overall Height	2.313 in
Pilot Configuration	No Pilot
Inner Ring OD (in)	2.71875
Bearing Insert Coating	Black Oxide
Housing Length	6 3/8 in
Bore Shape	Straight
Foot Height	0.813 in
Internal Clearance	Standard
Outer Ring Land Profile	Standard
Centerline to Front Face (in)	1.3125
T Core	4.25
Replaceable Insert	Yes
Relubricatable	No
Insert Material	52100 Bearing Steel, Black Oxided
Angle of Misalignment	±2°
Weight	10.5 LB
EAN or UPC	662461336427
