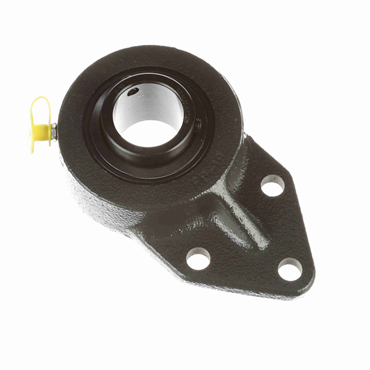

Narrow housing with three bolt holes on one side of the housing.
applications
Tight spaces
Tail pulleys
features
Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Felt labyrinth seal and flinger for dry & dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation
Relubricatable
Yes
Housing Width (in)
3.22
Housing Material
Cast Iron
Housing Width
3.22 in
Bolt Center-to-Center Length (in)
1.8750
Seal Type
Felt Labyrinth
Overall Length
5.359 in
End Cap
No
Foot Height (in)
0.375
Bolt Center-to-Center Length
1.875 in
Bearing Insert Coating
Black Oxide
Insert No.
2-13
Overall Length (in)
5.359
Expansion
No
Inner Race Heat Treat Method
Zone-Hardened
Lubrication
Lithium Complex NLGI 2 Grease
Bore Size
1.188 in
Inch/Metric
Inch
Overall Height to Inner Ring (in)
1.625
Pilot Configuration
No Pilot
Overall Height to Inner Ring
1.625 in
Centerline to Front Face
0.875 in
Foot Height
0.375 in
Bore Size - Inch
1.188
Replaceable Insert
Yes
Inner Ring O.D.
1.594 in
Angle of Misalignment
±2°
Operating Temperature [Max]
220 °F
Housing Base
Solid
Misalignment Type
Static Only
Internal Clearance
Standard
Inner Ring OD (in)
1.594
Outer Ring Land Profile
Standard
Centerline to Front Face (in)
0.875
Housing Color
Gray
Bore Shape
Straight
Locking Type
Set Screws
Maximum Operating Temperature
220
Retainer Type
Land Riding
Duty Series
Standard
Housing Construction
One Piece
Measure Units
Inch
Bearing Type
Ball Bearing
Speed [Max]
5450 rpm
Insert Material
52100 Bearing Steel, Black Oxided
Flange Type
3-Bolt Flange Bracket
Weight
2.25 LB
EAN or UPC
662461010198
