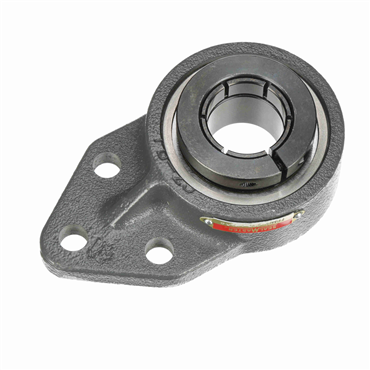

Cast Iron 6.125 in Black Oxide Coating Concentric Lock 3-Bolt Flange Bracket

FBMH-23T

Cast Iron 6.125 in Black Oxide Coating Concentric Lock 3-Bolt Flange Bracket
Item #101678274
  • Cast Iron Housing Material
  • Concentric Locking Type
  • 6.125 in Overall Length
Cast Iron 6.125 in Black Oxide Coating Concentric Lock 3-Bolt Flange Bracket
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Cast Iron Housing Material
  • Concentric Locking Type
  • 6.125 in Overall Length

features

  • Cast iron housed, extended inner ring bearing with ball riding nylon retainer
  • Designed to accommodate optional closed or open end to allow users to better conform OSHA requirements for personal protection
  • Skwezloc® Concentric locking for near perfect concentricity
  • Single lip contact seal and flinger
  • Supplied sealed for life with optional lubrication fitting in the box
Inner Race Heat Treat Method Zone-Hardened
Inch/Metric Inch
Collar OD (in) 2.563
Overall Length 6.125 in
Retainer Type Land Riding
Speed [Max] 4000 rpm
Measure Units Inch
Housing Width 3.75 in
Bearing Type Ball Bearing
Foot Height (in) 0.5
Bolt Size (in) 0.5
Insert No. MH-23T
Bore Shape Straight
Seal Type Single Lip Contact with Flinger
Bore Size - Inch 1.438
Lubrication Lithium Complex NLGI 2 Grease
Angle of Misalignment ±2°
Overall Height to Inner Ring (in) 1.938
Duty Series Standard
Relubricatable Yes
Foot Height 0.5 in
Bearing Insert Coating Black Oxide
Pilot Configuration No Pilot
Bolt Center-to-Center Length 2 in
Operating Temperature [Max] 220 °F
Bore Size 1.438 in
Overall Height to End Cap 2.781 in
Expansion No
Collar O.D. 2.563 in
Bolt Size 0.5 in
Overall Length (in) 6.125
Housing Construction One Piece
Overall Height to Inner Ring 1.938 in
Maximum Operating Temperature 220
Bolt Center-to-Center Length (in) 2
Internal Clearance Standard
Housing Base Solid
Housing Width (in) 3.75
Outer Ring Land Profile Standard
Housing Color Gray
Flange Type 3-Bolt Flange Bracket
Centerline to Front Face 1.063 in
Locking Type Concentric
Housing Material Cast Iron
End Cap No
Replaceable Insert Yes
Centerline to Front Face (in) 1.063
Misalignment Type Static Only
Insert Material 52100 Bearing Steel, Black Oxided
Weight 3.655 LB
EAN or UPC 662461341032
