HFT-16

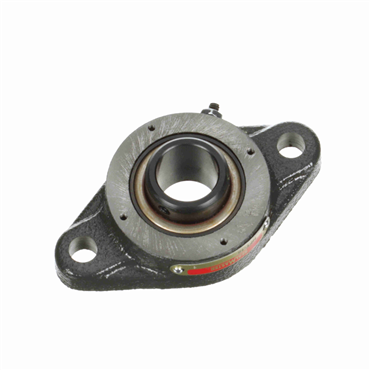

Cast Iron 2-Bolt Flange Square Head Set Screw Lock Standard Duty Flange Unit

Item #101178748

Auto Replenish

each One-time purchase

Product Details

Key to this design is an antirotation lock nut which ensures a direct lubrication path and prevents outer race creep.

Powder coated epoxy cast iron housing machined housing for end cap
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
High Temperature seals
High temperature grease with grease drain/purge port
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® customer lock pin for anti-rotation

Specifications

Shaft Dia.	1 in
Bolt Center-to-Center Length (in)	3.8910
Housing Material	Cast Iron
End Type	Open End
Bearing Type	Ball Bearing
Housing Color	Gray
Inch/Metric	Inch
Operating Temperature [Max]	220 °F
End Cap	No
Bore Size - Inch	1
Bolt Circle Dia.	3 57/64 in
Overall Length	4.875 in
Bolt Hole Spacing	3 57/64 in
Insert No.	HT-16
Retainer Type	Land Riding
Locking Type	Square Head Set Screw
Lubrication	Lithium Complex Grease With Synthetic Oil
Inner Ring OD (in)	0.531
Overall Height to Inner Ring	2.313 in
Bore Size	1 in
Outer Ring Land Profile	Standard
Duty Series	Standard
Angle of Misalignment	±2°
Speed [Max]	2500 rpm
Bolt Center-to-Center Length	3.891 in
Housing Construction	One Piece
Mounted Unit Duty	High Temperature Duty
Replaceable Insert	Yes
Pilot Configuration	No Pilot
Series	HFT
Inner Ring O.D.	0.531 in
Measure Units	Inch
Bearing Design	Non-Expansion
Relubricatable	Yes
Maximum Operating Temperature	220
Platform	Gold Line Ball Bearing
Expansion	No
Bearing Insert Coating	Black Oxide
Flange Type	2-Bolt Flange
Housing Base	Solid
Seal Type	V Spring
Housing Length	4 7/8 in
Inner Race Heat Treat Method	Zone-Hardened
Overall Length (in)	4.875
Overall Height to Inner Ring (in)	2.313
Internal Clearance	Increase
Misalignment Type	Static Only
Insert Material	52100 Bearing Steel, Black Oxided
Bore Shape	Straight
Locking Device	Setscrew Locking Collar
Weight	1.45 LB
EAN or UPC	662461231128
