SC-39T

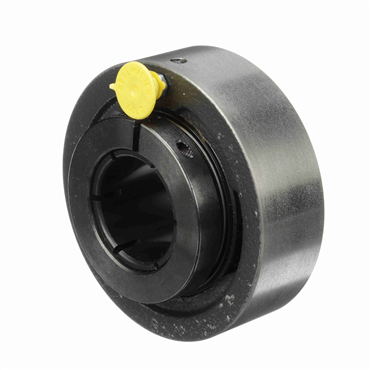

705423 / Gold Line Ball Bearing

Item #101180109

Auto Replenish

each One-time purchase

Product Details

Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Felt labyrinth seal and flinger for dry & dusty environment
Skwezloc® concentric locking for near perfect concentricity
Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation

Specifications

Radial Static Load Capacity (lb)	8150
Bearing Design	Non-Expansion
Duty Series	Standard
Outer Diameter (in)	5.875
Insert Material	52100 Bearing Steel, Black Oxided
Bore Size - Inch	2.4375
Overall Width (in)	2.625
O.D.	5.875 in
Radial Dynamic Load Capacity	11789 lb
Locking Type	Concentric
Angle of Misalignment	±2°
Duty	Standard-Duty
Speed [Max]	4100 rpm
Centerline to Front Face (in)	1.625
Collar O.D.	0.813 in
Housing Construction	One Piece
Housing Color	Gray
Outer Ring Land Profile	Standard
Replaceable Insert	Yes
Bearing Type	Ball Bearing
Inner Race Length	2.625 in
Inner Race Heat Treat Method	Zone-Hardened
Relubricatable	Yes
Radial Dynamic Load Capacity (lb)	11789
Insert No.	2-27T
Operating Temperature [Max]	220 °F
Seal Type	Felt Labyrinth
Expansion	No
Inch/Metric	Inch
Bore Size	2.438 in
Series	SC-T
Retainer Type	Land Riding
Bearing Insert Coating	Black Oxide
Inner Race Length (in)	2.625
Housing Type	Cylindrical Cartridge
Bore Shape	Straight
Locking Device	Setscrew Locking
Overall Width	2.625 in
Centerline to Front Face	1.625 in
Cartridge Width	1.63 in
Cartridge Width (in)	1.625
Housing Material	Cast Iron
Collar OD (in)	0.813
End Cap	No
Lubrication	Lithium Complex NLGI 2 Grease
Maximum Operating Temperature	220
Internal Clearance	Standard
Misalignment Type	Static Only
Measure Units	Inch
Shaft Dia.	2.4375 in
Weight	9.9 LB
EAN or UPC	662461029954
