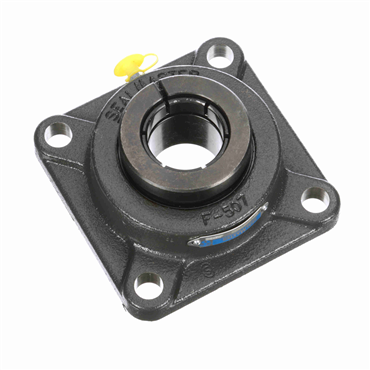

Designed for flush mounting with machined bases and four bolt holes.
features
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation
Powder coated epoxy cast iron housing with extended inner ring bearings
Skwezloc® concentric locking for near perfect concentricity
Single lip contact seal with black oxide bearing races
Metric fitting and mounting bolts
Speed [Max]
4150 rpm
Series
SF-T
Housing Width
130.2 mm
Misalignment Type
Static Only
Seal Type
Single Lip Contact
End Cap
No
Expansion
No
Outer Ring Land Profile
Standard
Relubricatable
Yes
Internal Clearance
Standard
Housing Construction
One Piece
Housing Color
Gray
Housing Width (mm)
130.2
Housing Length
5 1/8 in
Lubrication
Lithium Complex NLGI 2 Grease
Bore Shape
Straight
Bearing Design
Non-Expansion
Insert Material
52100 Bearing Steel, Black Oxided
Platform
Gold Line Ball Bearing
Locking Type
Concentric
Bolt Size
14 mm
Bearing Insert Coating
Black Oxide
Shaft Dia.
40 mm
Bolt Hole Spacing
4 in
Pilot Configuration
No Pilot
Bore Size - Metric
40
Maximum Operating Temperature
220
Replaceable Insert
Yes
Angle of Misalignment
±2°
Inner Race Heat Treat Method
Zone-Hardened
Duty Series
Standard
Insert No.
5208TMC
Retainer Type
Land Riding
Bolt Center-to-Center Length (in)
4
Flange Type
4-Bolt Flange
Locking Device
Skwezloc® Concentric Collar
Bolt Center-to-Center Length
4 in
Bore Size
40 mm
Bearing Type
Ball Bearing
Housing Base
Solid
Mounted Unit Duty
Standard Duty
Inch/Metric
Metric
Operating Temperature [Max]
220 °F
Bolt Size (mm)
14
Measure Units
Metric
Bolt Circle Dia.
N/A
End Type
Open End
Housing Material
Cast Iron
Weight
5.165 LB
EAN or UPC
662461253854
