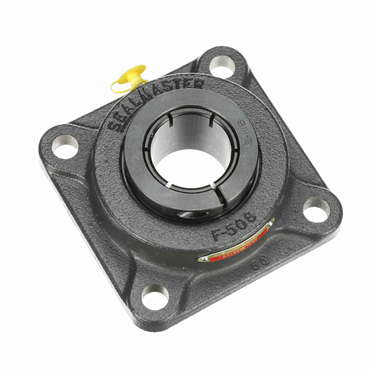

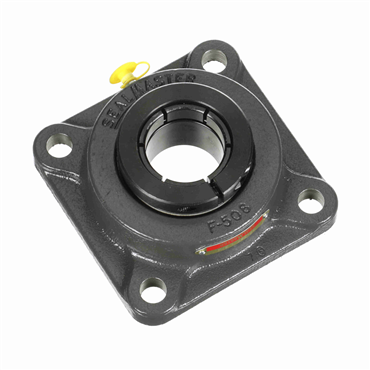

Cast Iron 4-Bolt Flange Concentric Lock Standard Duty Flange Unit

SF-28TC

Cast Iron 4-Bolt Flange Concentric Lock Standard Duty Flange Unit
Item #101180364
  • 4-Bolt Flange Type
  • Cast Iron Housing Material
  • Black Oxide Bearing Insert Coating
  • Concentric Locking Type
Cast Iron 4-Bolt Flange Concentric Lock Standard Duty Flange Unit
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 4-Bolt Flange Type
  • Cast Iron Housing Material
  • Black Oxide Bearing Insert Coating
  • Concentric Locking Type

description

  • Designed for flush mounting with machined bases and four bolt holes.

features

  • Powder coated epoxy cast iron housing with extended inner ring bearings
  • Skwezloc® concentric locking for near perfect concentricity
  • Single lip contact seal
  • Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
  • Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation
Housing Construction One Piece
Inner Race Length 2 in
T Core 3.875
Shaft Dia. 1.75 in
Duty Series Standard
Housing Color Gray
Retainer Type Land Riding
Pilot Configuration No Pilot
Bore Size 1.75 in
Bolt Size (in) 0.5625
Bearing Insert Coating Black Oxide
Inner Race Length (in) 2
Measure Units Inch
Internal Clearance Standard
Bolt Hole Spacing 4 1/8 in
Bolt Center-to-Center Length (in) 4.1250
Housing Material Cast Iron
Bore Size - Inch 1.75
Lubrication Lithium Complex NLGI 2 Grease
Bolt Size 0.563 in
Replaceable Insert Yes
Collar OD (in) 2.9375
Mounted Unit Duty Standard Duty
Angle of Misalignment ±2°
Insert No. 2-112TC
Bolt Circle Dia. N/A
Relubricatable Yes
Locking Type Concentric
Flange Type 4-Bolt Flange
Outer Ring Land Profile Standard
Series SF-T
Seal Type Single Lip Contact
Housing Length 5 3/8 in
Inch/Metric Inch
Insert Material 52100 Bearing Steel, Black Oxided
Overall Height (in) 2.109375
Foot Height 0.563 in
Locking Device Skwezloc® Concentric Collar
Bore Shape Straight
Centerline to Front Face (in) 1.25
Expansion No
End Type Open End
Housing Base Solid
End Cap No
Bolt Center-to-Center Length 4.125 in
Collar O.D. 2.938 in
Speed [Max] 3800 rpm
Platform Gold Line Ball Bearing
Bearing Type Ball Bearing
Misalignment Type Static Only
Maximum Operating Temperature 220
Inner Race Heat Treat Method Zone-Hardened
Foot Height (in) 0.5625
Bearing Design Non-Expansion
Centerline to Front Face 1.25 in
Operating Temperature [Max] 220 °F
Overall Height 2.109 in
Weight 6.055 LB
EAN or UPC 662461033128
