SFT-19T RM

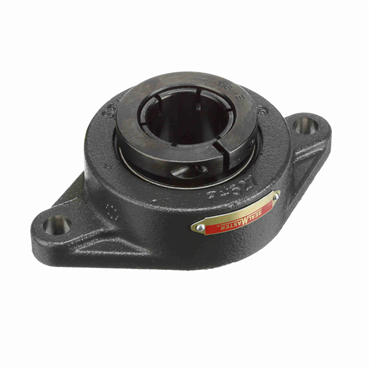

Cast Iron 2-Bolt Flange Concentric Lock Standard Duty Flange Unit

Item #105115963

Auto Replenish

each One-time purchase

Product Details

Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
Powder coated epoxy cast iron housing with extended inner ring bearings
Skwezloc® concentric locking for near perfect concentricity
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Specifications

Expansion	No
Speed [Max]	7600 rpm
Bearing Type	Ball Bearing
Operating Temperature [Max]	220 °F
Angle of Misalignment	±2°
Collar O.D.	2.188 in
Flange Type	2-Bolt Flange
Internal Clearance	Standard
Locking Device	Skwezloc® Concentric Collar
Bearing Design	Non-Expansion
Locking Type	Concentric
Inner Race Heat Treat Method	Zone-Hardened
Bolt Hole Spacing	4 19/32 in
Bolt Center-to-Center Length	4.594 in
Housing Length	5 9/16 in
Collar OD (in)	2.1875
Bolt Size (in)	0.4375
Maximum Operating Temperature	220
Replaceable Insert	Yes
Bolt Center-to-Center Length (in)	4.5940
Housing Base	Solid
End Cap	No
Overall Length (in)	5.563
Special Features	Reduced Maintenance
Overall Length	5.563 in
Misalignment Type	Static Only
Duty Series	Standard
Seal Type	Felt Labyrinth
Lubrication	Lithium Complex NLGI 2 Grease
Pilot Configuration	No Pilot
Bolt Circle Dia.	4 19/32 in
Centerline to Front Face (in)	0.938
Housing Color	Gray
Outer Ring Land Profile	Tapered
Bore Size - Inch	1.188
Housing Material	Cast Iron
Series	SFT-T
Shaft Dia.	1.1875 in
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide
Centerline to Front Face	0.938 in
Measure Units	Inch
Overall Height to Inner Ring	1.625 in
End Type	Open End
Mounted Unit Duty	Standard Duty
Foot Height	0.531 in
Overall Height to Inner Ring (in)	1.625
Bore Shape	Straight
Insert Material	52100 Bearing Steel, Black Oxided
Relubricatable	No
Retainer Type	Land Riding
Inch/Metric	Inch
Housing Construction	One Piece
Foot Height (in)	0.531
Insert No.	2-13T RM
Bore Size	1.188 in
Bolt Size	0.438 in
Weight	2.4 LB
EAN or UPC	662461372081
