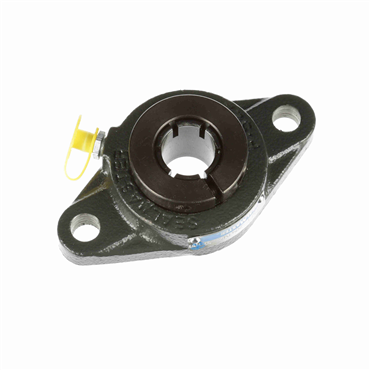

Designed for flush mounting with machined bases for light loads and two bolt holes.
features
Powder coated epoxy cast iron housing with extended inner ring bearings
Skwezloc® concentric locking for near perfect concentricity
Single lip contact seal with black oxide bearing races
Metric fitting and mounting bolts
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation
Relubricatable
Yes
Operating Temperature [Max]
220 °F
Flange Type
2-Bolt Flange
Foot Height (in)
0.437
Shaft Dia.
20 mm
Housing Color
Gray
Foot Height
0.437 in, 11.1 mm
Misalignment Type
Static Only
Inch/Metric
Metric
Overall Height
1.344 in
Speed [Max]
6450 rpm
Overall Length (mm)
111.9
Bolt Size (mm)
M10
Bearing Type
Ball Bearing
Housing Length
4 13/32 in
Length Through Bore (in)
1.219
Centerline to Front Face
0.8 in, 19.8 mm
Locking Type
Concentric
Radial Dynamic Load Capacity (lb)
2611
Bolt Size
M10
Radial Dynamic Load Capacity
2611 lb
Centerline to Front Face (in)
0.8
Housing Width (in)
2.375
Insert No.
5204TMC
Housing Material
Cast Iron
Bearing Design
Non-Expansion
Pilot Configuration
No Pilot
Angle of Misalignment
±2°
Duty Series
Standard
Inner Race Heat Treat Method
Zone-Hardened
Series
SFT-T
Insert Material
52100 Bearing Steel, Black Oxided
Housing Base
Solid
Lubrication
Lithium Complex NLGI 2 Grease
Overall Height to Inner Ring (mm)
34.1
Retainer Type
Land Riding
Overall Height to Inner Ring (in)
1.343
Replaceable Insert
Yes
Housing Width
2.375 in
Mounted Unit Duty
Standard Duty
Inner Race Length
1.219 in
Bearing Insert Coating
Black Oxide
Expansion
No
Internal Clearance
Standard
Outer Ring Land Profile
Standard
Bolt Hole Spacing
3 17/32 in
Foot Height (mm)
11.1
End Cap
No
Inner Race Length (in)
1.219
Overall Height to Inner Ring
1.343 in, 34.1 mm
Centerline to Front Face (mm)
19.8
Bore Shape
Straight
Maximum Operating Temperature
220
Seal Type
Single Lip Contact
Overall Length (in)
4.406
Locking Device
Skwezloc® Concentric Collar
Overall Width (in)
2.375
Bolt Center-to-Center Length
89.7 mm
Housing Construction
One Piece
End Type
Open End
Bolt Circle Dia.
3 17/32 in
Overall Height (in)
1.344
Bore Size - Metric
20
Bore Size
20 mm
Bolt Center-to-Center Length (mm)
89.7
Measure Units
Metric
Overall Width
2.375 in
Overall Length
4.406 in, 111.9 mm
Platform
Gold Line Ball Bearing
Radial Static Load Capacity (lb)
1444
Weight
1.3 LB
EAN or UPC
662461253908
