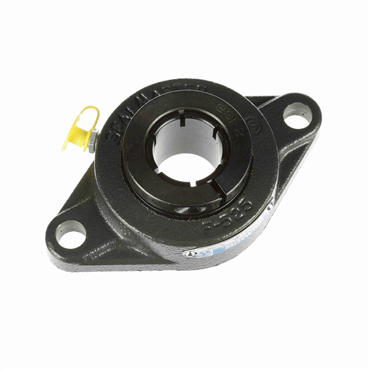

Designed for flush mounting with machined bases for light loads and two bolt holes.
features
Powder coated epoxy cast iron housing with extended inner ring bearings
Skwezloc® concentric locking for near perfect concentricity
Single lip contact seal with black oxide bearing races
Metric fitting and mounting bolts
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation
Pilot Configuration
No Pilot
Expansion
No
Mounted Unit Duty
Standard Duty
Locking Type
Concentric
Retainer Type
Land Riding
Inner Race Heat Treat Method
Zone-Hardened
Bearing Design
Non-Expansion
Bolt Center-to-Center Length
116.7 mm
Foot Height (in)
0.531
Shaft Dia.
30 mm
Overall Length (in)
5.5625
End Cap
No
Overall Length
5.563 in, 141.3 mm
Bolt Size (mm)
M12
Seal Type
Single Lip Contact
Relubricatable
Yes
Centerline to Front Face
0.9 in, 23.8 mm
Misalignment Type
Static Only
Overall Width (in)
3.25
Overall Height (in)
1.625
Housing Color
Gray
Angle of Misalignment
±2°
Insert Material
52100 Bearing Steel, Black Oxided
Bore Size
30 mm
Overall Height to Inner Ring (in)
1.626
Duty Series
Standard
Bolt Circle Dia.
4 19/32 in
Housing Width
3.25 in
Radial Dynamic Load Capacity
4381 lb
Housing Width (in)
3.25
Platform
Gold Line Ball Bearing
End Type
Open End
Operating Temperature [Max]
220 °F
Series
SFT-T
Centerline to Front Face (mm)
23.8
Inch/Metric
Metric
Locking Device
Skwezloc® Concentric Collar
Maximum Operating Temperature
220
Insert No.
5206TMC
Overall Height to Inner Ring
1.626 in, 41.3 mm
Speed [Max]
5450 rpm
Bolt Hole Spacing
4 19/32 in
Overall Length (mm)
141.3
Inner Race Length
1.61 in
Internal Clearance
Standard
Foot Height (mm)
13.5
Length Through Bore (in)
1.61
Housing Construction
One Piece
Foot Height
0.531 in, 13.5 mm
Overall Height to Inner Ring (mm)
41.3
Measure Units
Metric
Outer Ring Land Profile
Standard
Radial Static Load Capacity (lb)
2567
Centerline to Front Face (in)
0.9
Bearing Type
Ball Bearing
Overall Height
1.625 in
Bore Size - Metric
30
Bore Shape
Straight
Housing Base
Solid
Overall Width
3.25 in
Flange Type
2-Bolt Flange
Radial Dynamic Load Capacity (lb)
4381
Housing Length
5 9/16 in
Housing Material
Cast Iron
Bolt Center-to-Center Length (mm)
116.7
Lubrication
Lithium Complex NLGI 2 Grease
Replaceable Insert
Yes
Inner Race Length (in)
1.61
Bearing Insert Coating
Black Oxide
Bolt Size
M12
Weight
2.37 LB
EAN or UPC
662461253922
