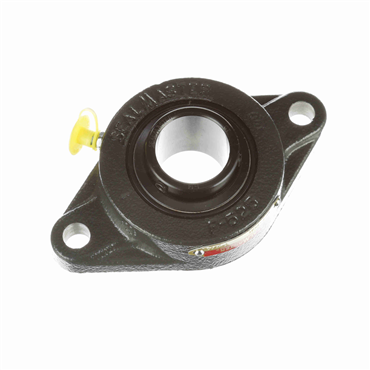

Designed for flush mounting with machined bases for light loads and two bolt holes.
features
Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation
Maximum Operating Temperature
220
Bolt Circle Dia.
4 19/32 in
Bearing Design
Non-Expansion
Duty Series
Standard
Bolt Center-to-Center Length
4.594 in
Flange Type
2-Bolt Flange
Locking Type
Set Screws
Overall Height to Inner Ring (in)
1.563
Inner Ring OD (in)
1.594
Overall Length
5.563 in
Housing Construction
One Piece
Internal Clearance
Standard
Shaft Dia.
1.25 in
Mounted Unit Duty
Standard Duty
Bolt Size (in)
0.4375
Retainer Type
Land Riding
Insert Material
52100 Bearing Steel, Black Oxided
Inner Ring O.D.
1.594 in
Angle of Misalignment
±2°
Bore Size - Inch
1.25
Replaceable Insert
Yes
Expansion
No
Housing Material
Cast Iron
Bore Shape
Straight
Speed [Max]
5450 rpm
Insert No.
1-14
Bore Size
1.25 in
Outer Ring Land Profile
Standard
Bolt Hole Spacing
4 19/32 in
Misalignment Type
Static Only
Foot Height
0.531 in
Pilot Configuration
No Pilot
Relubricatable
Yes
End Cap
No
Centerline to Front Face (in)
0.875
Platform
Gold Line Ball Bearing
Housing Color
Gray
Housing Base
Solid
Centerline to Front Face
0.875 in
Bearing Type
Ball Bearing
Lubrication
Lithium Complex NLGI 2 Grease
Seal Type
Felt Labyrinth
Bolt Size
0.438 in
Measure Units
Inch
Housing Length
5 9/16 in
Locking Device
Setscrew Locking Collar
Foot Height (in)
0.531
Bolt Center-to-Center Length (in)
4.5940
End Type
Open End
Overall Length (in)
5.563
Operating Temperature [Max]
220 °F
Inch/Metric
Inch
Series
SFT
Overall Height to Inner Ring
1.563 in
Bearing Insert Coating
Black Oxide
Inner Race Heat Treat Method
Zone-Hardened
Weight
2.105 LB
EAN or UPC
662461004326
NSN Number
3130-00-079-0836
