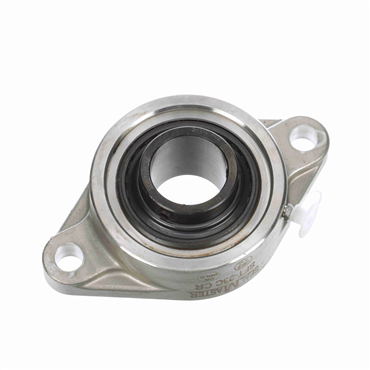

Designed for flush mounting with machined bases for light loads and two bolt holes.
applications
Food processing
Beverage industry
Meat, poultry, and seafood processing
Dairy industry
Drug and pharmaceutical plants
Chemical processing
Pulp and paper mills
Municipal treatment equipment
Marine and naval
features
Single lip contact seal with black oxide bearing races
High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation
options
Corrosion Resistant
Inch/Metric
Inch
Packaged Width
5.00 in
Shaft Dia.
1.4375 in
Pilot Configuration
No Pilot
Replaceable Insert
Yes
Inner Ring OD (in)
1.859
Misalignment Type
Static Only
Bolt Size
0.5 in
Expansion
No
Housing Color
Silver
Bearing Design
Non-Expansion
Outer Ring Land Profile
Standard
Internal Clearance
Standard
Overall Height to Inner Ring (in)
1.75
Bearing Type
Ball Bearing
Housing Base
Solid
Bolt Circle Dia.
5 1/8 in
End Cap
No
Overall Height to Inner Ring
1.75 in
Housing Material
Stainless Steel
Foot Height (in)
0.563
Angle of Misalignment
±2°
Bolt Hole Spacing
5 1/8 in
Bolt Center-to-Center Length (in)
5.1250
Relubricatable
Yes
Bolt Center-to-Center Length
5.125 in
Maximum Operating Temperature
220
Packaged Height
2.00 in
Speed [Max]
4650 rpm
Retainer Type
Land Riding
Backside Shield/Seal
Optional backside shield available order separate
Lubrication
Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Flange Type
2-Bolt Flange
Housing Construction
One Piece
Bore Size - Inch
1.438
Series
CR Series
Overall Length (in)
6.125
Foot Height
0.563 in
Bore Size
1.438 in
Overall Length
6.125 in
Bore Shape
Straight
Measure Units
Inch
Packaged Length
5.00 in
Centerline to Front Face
1 in
Seal Type
Single Lip Contact
Inner Race Heat Treat Method
Zone-Hardened
Bolt Size (in)
0.5
Insert No.
2-17C FG2
Bearing Insert Coating
Black Oxide
Inner Ring O.D.
1.859 in
Locking Device
Setscrew Locking Collar
Mounted Unit Duty
Standard Duty
Platform
CR Series
End Type
Open End
Insert Material
52100 Bearing Steel, Black Oxided
Locking Type
Set Screws
Operating Temperature [Max]
220 °F
Centerline to Front Face (in)
1
Housing Length
6 1/8 in
Duty Series
Standard
Weight
3.0 LB
EAN or UPC
662461235225
